Главная Каталог продукции Toolunited 12 307-07 - Non-centre cutting multiple rows end mill R215.59-CV50/50063134-12.4B

R215.59-CV50/50063134-12.4B

Артикул: 00008454

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

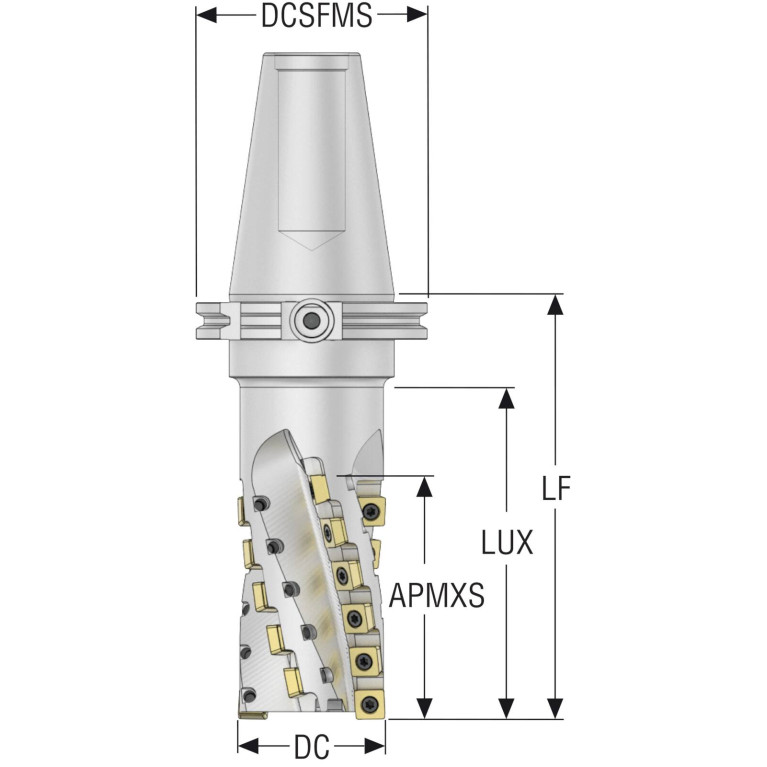

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SKG05001785

FamilyProducts

R215.59-CV50/50063134-12.4B

HAND Cutting direction

R - Right

ID Technical product number

00008454

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-SC1206 3N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001785

LU Usable length

171.4 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

R215.59-CV50/50063134-12.4B

OAL Overall length

312.05 mm

Working process

No working processes available

WT Weight of item

5.5 kg

ZEFP Peripheral effective cutting edge count
