Главная Каталог продукции Toolunited 12 307-07 - Non-centre cutting multiple rows end mill R215.59-BT50.080.095-12.4SR6

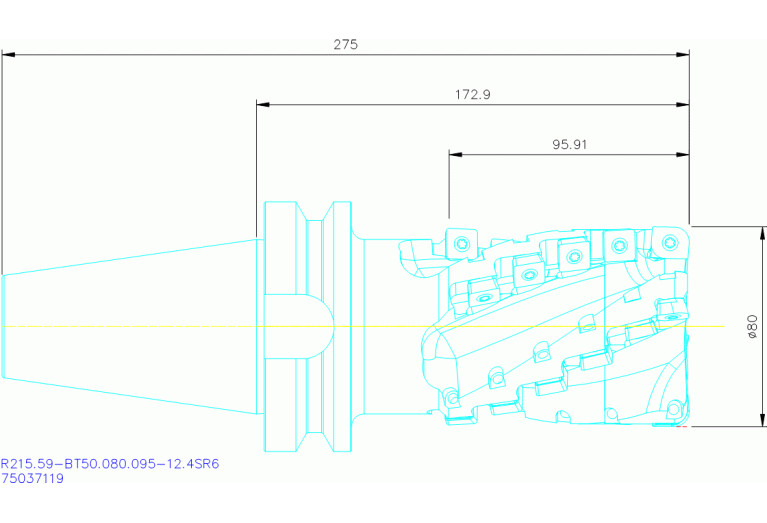

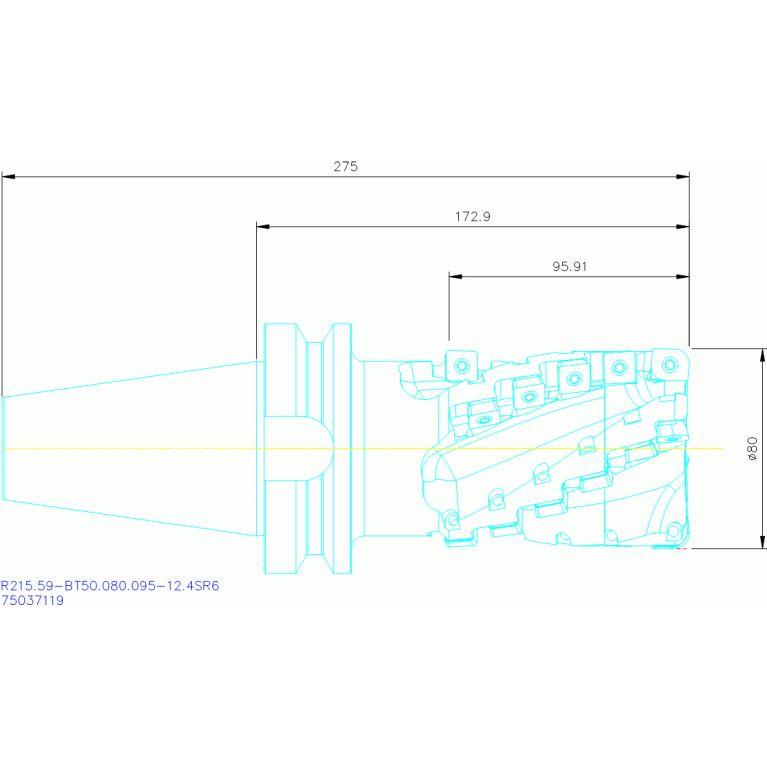

R215.59-BT50.080.095-12.4SR6

R215.59-BT50.080.095-12.4SR6 R215.59-BT50.080.095-12.4SR6 R215.59-BT50.080.095-12.4SR6 R215.59-BT50.080.095-12.4SR6

R215.59-BT50.080.095-12.4SR6

SECO Tools
Артикул: 75037119
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
86 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
7 Degree
A2B Clearance angle major Pos. B
7 Degree
APMX Depth of cut maximum
95 mm
B1A Cutting edge length Pos. A
15.249 mm
B1B Cutting edge length Pos. B
12.673 mm
B3B Inscribed circle diameter Pos. B
12.673 mm
BLDA Tool style code Position A
5
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
6.35 mm
C1B Insert thickness Pos. B
6.35 mm
CCONMS Connection count machine side
2
CICT Cutting item count
22
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
6 mm
D1B Corner radius Pos. B
1.2 mm
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
SKG05005085
FamilyProducts
R215.59-BT50.080.095-12.4SR6
GAMF Rake angle radial
-4 Degree
GAMP Rake angle axial
-14 Degree
HAND Cutting direction
R - Right
ID Technical product number
75037119
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
173 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SCET120612R-M10
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SC3-120612
LOC-03 CCFMS Connection code form
50
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05005085
LPR Protruding length
173 mm
LU Usable length
135 mm
Name Identifying order number
R215.59-BT50.080.095-12.4SR6
NameAnsi Identifying order number inch alternative
R215.59BT50080095124SR6
OAL Overall length
275 mm
RPMX Rotational speed maximum
6500 1/min
Working process
No working processes available
WT Weight of item
6.7 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
