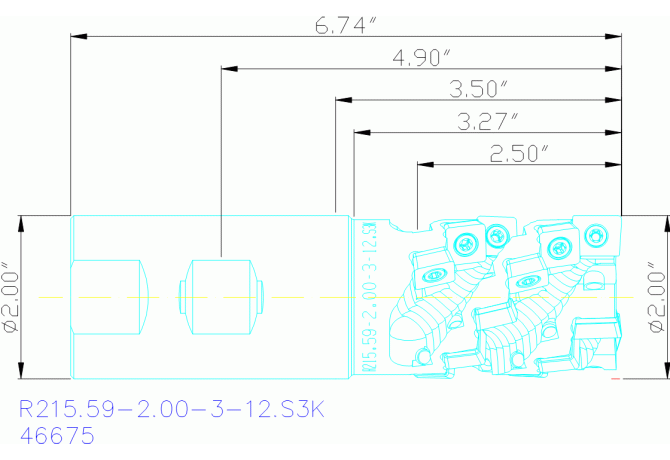

Главная Каталог продукции Toolunited 12 307-07 - Non-centre cutting multiple rows end mill R215.59-2.00-3-12.S3K

R215.59-2.00-3-12.S3K

R215.59-2.00-3-12.S3K R215.59-2.00-3-12.S3K

R215.59-2.00-3-12.S3K

SECO Tools
Артикул: 00046675
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
86 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
7 Degree
A2B Clearance angle major Pos. B
7 Degree
APMX Depth of cut maximum
63.5 mm
B1A Cutting edge length Pos. A
15.249 mm
B1B Cutting edge length Pos. B
12.673 mm
B3B Inscribed circle diameter Pos. B
12.673 mm
BLDA Tool style code Position A
5
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
6.35 mm
C1B Insert thickness Pos. B
6.35 mm
CCONMS Connection count machine side
1
CICT Cutting item count
20
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
2.4 mm
D1B Corner radius Pos. B
1.2 mm
DC Cutting diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
ZYL20001025
FamilyProducts
R215.59-2.00-3-12.S3K
GAMF Rake angle radial
-14 Degree
GAMP Rake angle axial
-7 Degree
HAND Cutting direction
R - Right
ID Technical product number
00046675
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SCET120612R-M10
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SC3-120612
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL20001025
LPR Protruding length
88.9 mm
LS Shank length
85.4 mm
LU Usable length
82 mm
Name Identifying order number
R215.59-2.00-3-12.S3K
NameAnsi Identifying order number inch alternative
R215.59-02.00-3-12.S3K
OAL Overall length
171 mm
RPMX Rotational speed maximum
8300 1/min
Working process
No working processes available
WT Weight of item
2.3 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
