Главная Каталог продукции Toolunited 12 307-07 - Non-centre cutting multiple rows end mill EMP05-032-G32-AD15-C

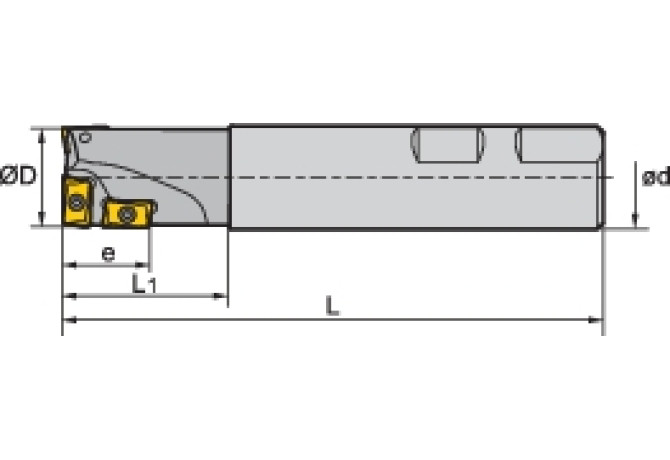

EMP05-032-G32-AD15-C

EMP05-032-G32-AD15-C EMP05-032-G32-AD15-C

EMP05-032-G32-AD15-C

ZCC Cutting Tools
Артикул: EMP05-032-G32-AD15-C
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
78 Degree
A1B Cutting edge angle major Pos. B
78 Degree
A2A Clearance angle major Pos. A
15 Degree
A2B Clearance angle major Pos. B
15 Degree
APMX Depth of cut maximum
34 mm
B1A Cutting edge length Pos. A
16 mm
B1B Cutting edge length Pos. B
17.05 mm
B2A Insert width Pos. A
9.62 mm
B2B Insert width Pos. B
8.81 mm
B3A Inscribed circle diameter Pos. A
9.62 mm
B3B Inscribed circle diameter Pos. B
8.81 mm
BLDA Tool style code Position A
5
BLDB Tool style code Position B
5
C1A Insert thickness Pos. A
5 mm
C1B Insert thickness Pos. B
4.95 mm
CCONMS Connection count machine side
1
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/1/2024
DIN
ZYL03201015
FamilyProducts
Square shoulder mill
HAND Cutting direction
R - Right
ID Identifying order number
EMP05-032-G32-AD15-C
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
150 mm
LH Head length
50 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
ADKT150508R-GM
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
ZCC-ADKT1505R
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
LS Shank length
100 mm
OAL Overall length
150 mm
Working process
FEC - Square shoulder milling,FNU - Groove milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.425 kg
ZEFP Peripheral effective cutting edge count
1
