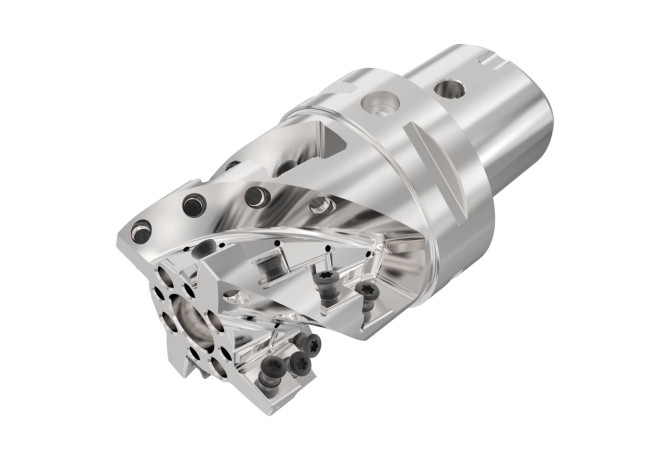

Главная Каталог продукции Toolunited 12 307-07 - Non-centre cutting multiple rows end mill C6-R217.82-2.5-1.69-SN.4BA

C6-R217.82-2.5-1.69-SN.4BA

Артикул: 10128161

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

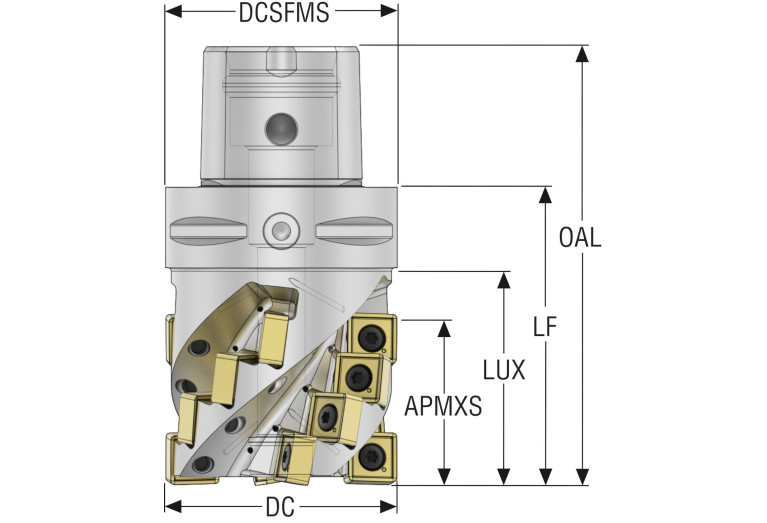

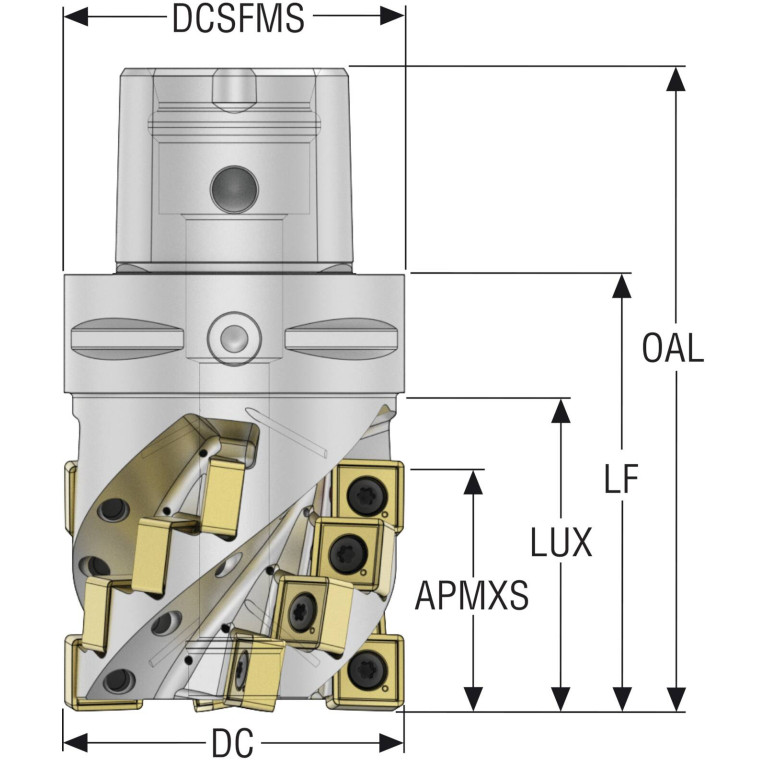

DC Cutting diameter

63.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS06300195

FamilyProducts

C6-R217.82-2.5-1.69-SN.4BA

HAND Cutting direction

R - Right

ID Technical product number

10128161

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-SN1306 3N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LU Usable length

55.85 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

C6-R217.82-2.5-1.69-SN.4BA

OAL Overall length

116.65 mm

Working process

No working processes available

WT Weight of item

1.461 kg

ZEFP Peripheral effective cutting edge count
