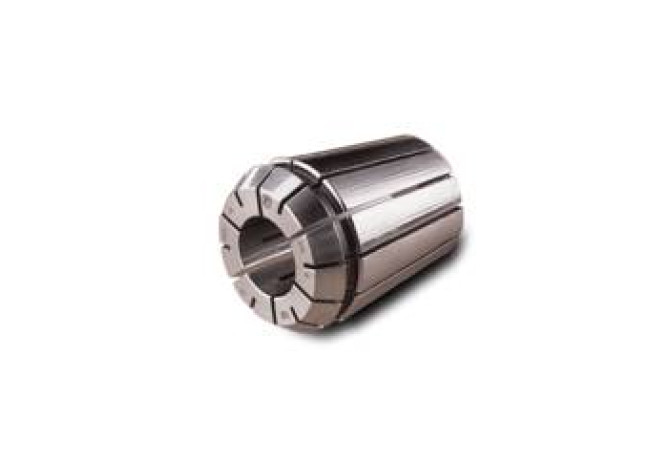

Главная Каталог продукции Toolunited 12 405-01 - Double angle collet 58803216

58803216

Артикул: 75041927

В наличии

В корзину

Описание

Характеристики

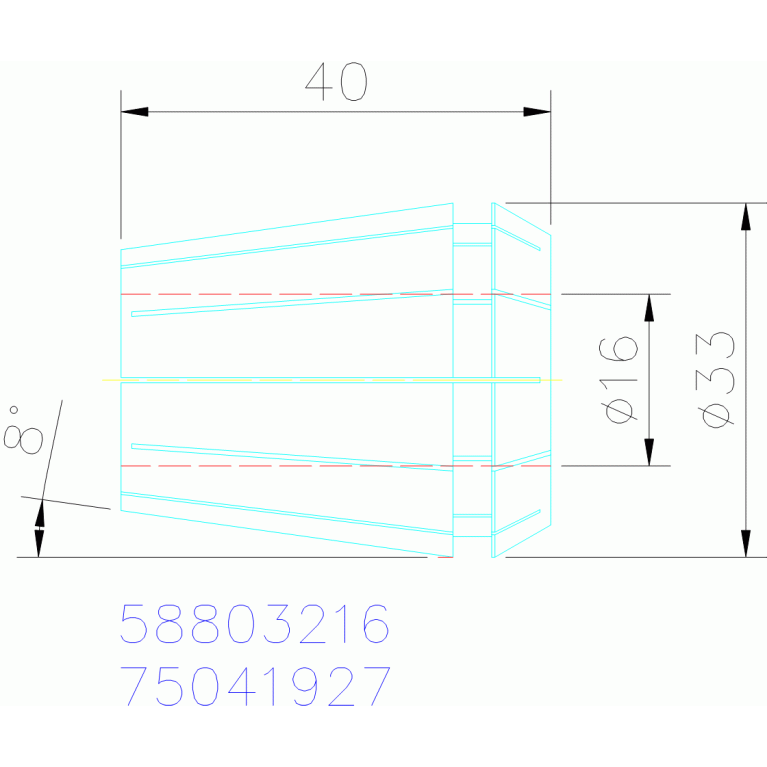

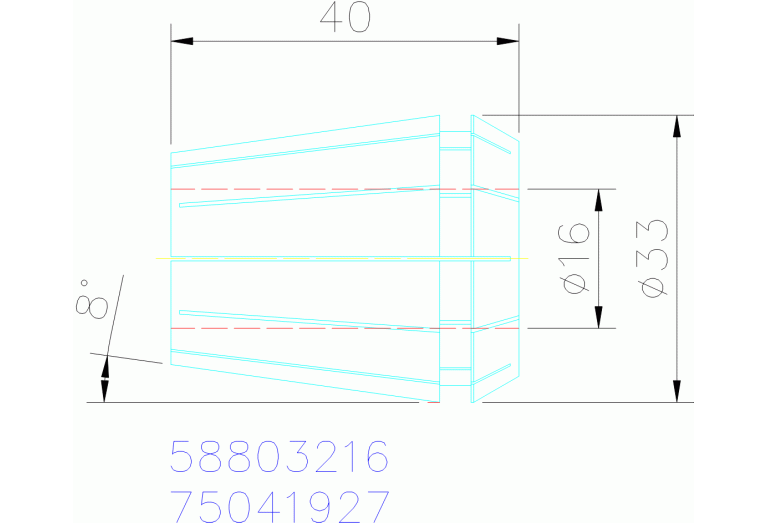

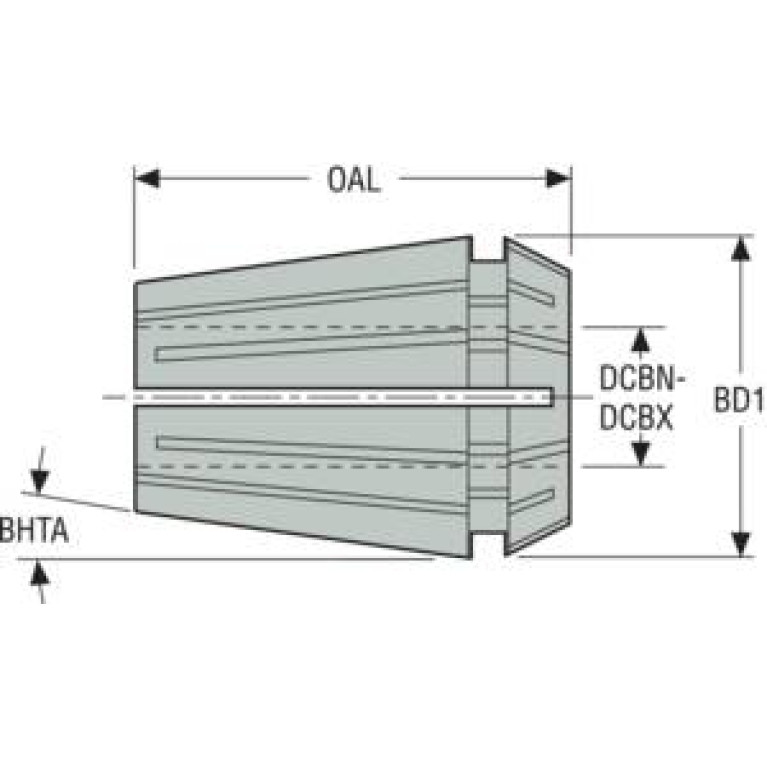

BD Body diameter

33 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0150

DCBN Connection bore diameter minimum

15 mm

DCBX Connection bore diameter maximum

16 mm

Delivery state valid from

12/1/2023

DIN

SZD03200285

FamilyProducts

58803216

ID Technical product number

75041927

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0150

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01500105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD03200285

Name Identifying order number

58803216

OAL Overall length

40 mm

TA Taper angle 1

16 Degree

WT Weight of item

0.12 kg
