Главная Каталог продукции Toolunited 12 308-05 - Full-side slot milling cutter FDN D160-12-40-XN09

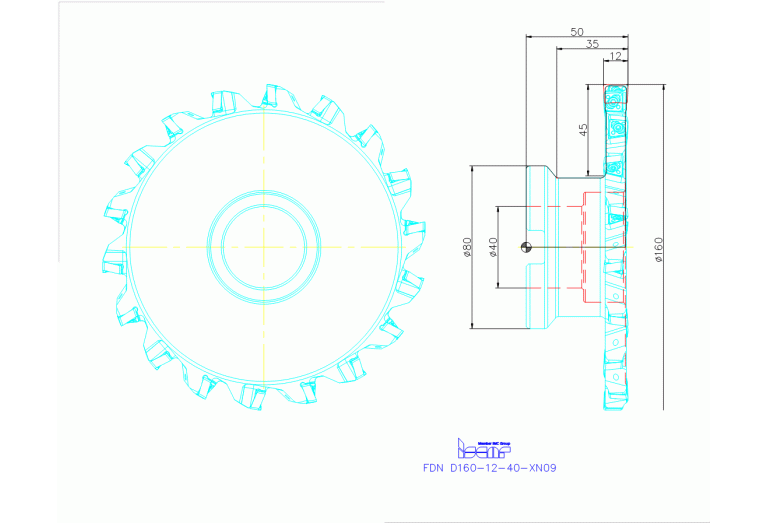

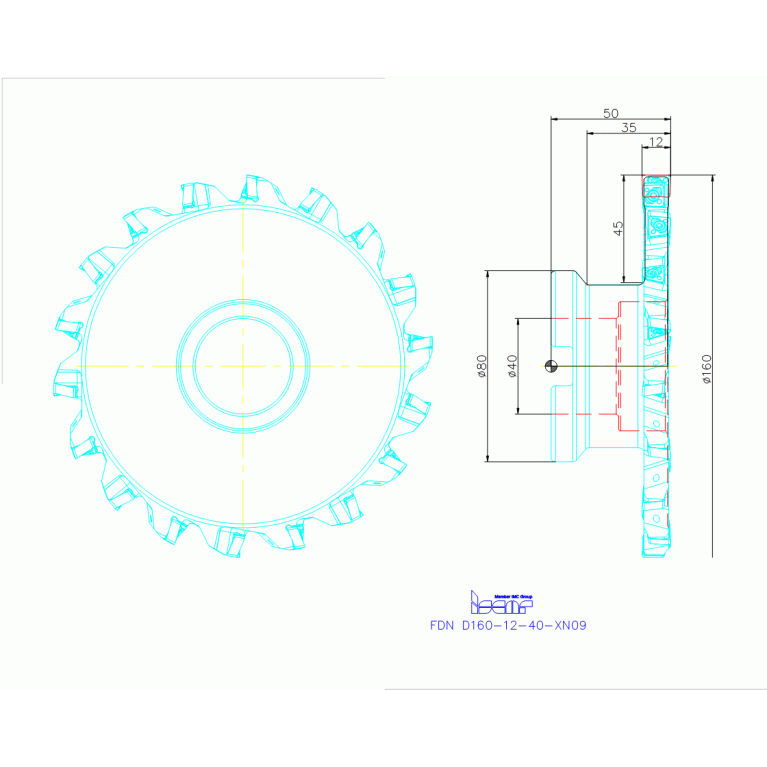

FDN D160-12-40-XN09

Артикул: 3343108

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

45 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

160 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DHUB Hub diameter

80 mm

DIN

FDA04002200

FamilyProducts

Full Slot Flange Type Slotting Cutters Carrying XNMU 0904 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3343108

Interface codes

J6 /

ISYC Subclass

308-05 - Full-side slot milling cutter

LOC-02 BI Block index

LOC-02 MIID Master insert identification

XNMU 0904...

LOC-02 ISO

IS$$393537952134454

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-393537952134454

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04002200

Name Identifying order number

FDN D160-12-40-XN09

OAL Overall length

50 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

1.78 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
