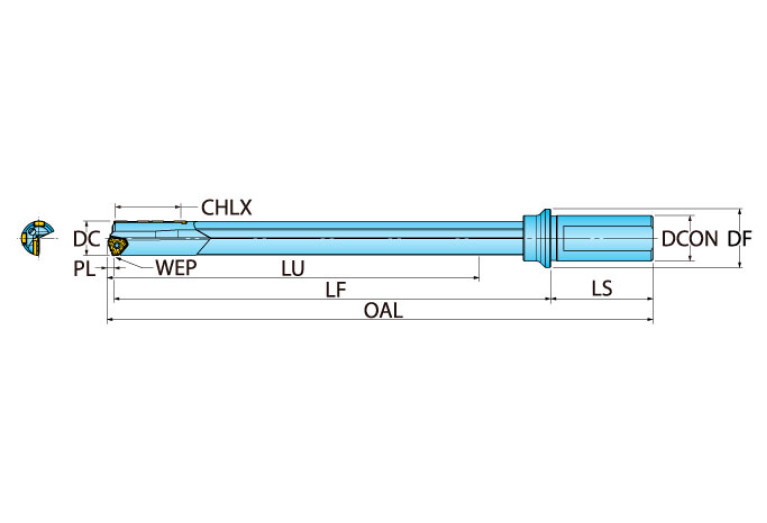

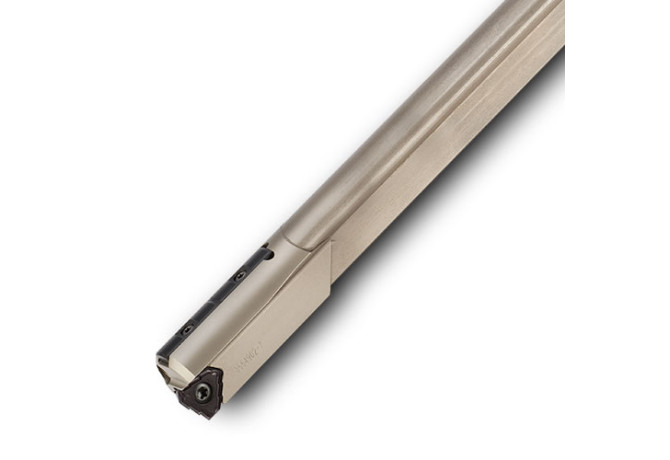

Главная Каталог продукции Toolunited 12 306-01 - Twist drill for indexable inserts GTADP28000700JGR01

GTADP28000700JGR01

GTADP28000700JGR01 GTADP28000700JGR01 GTADP28000700JGR01

GTADP28000700JGR01

Ingersoll
Артикул: 4849444
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
60 Degree
A1B Cutting edge angle major Pos. B
60 Degree
A2A Clearance angle major Pos. A
13 Degree
A2B Clearance angle major Pos. B
13 Degree
B1A Cutting edge length Pos. A
14 mm
B1B Cutting edge length Pos. B
14 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
4.3 mm
C1B Insert thickness Pos. B
4.3 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.5 mm
D1B Corner radius Pos. B
0.5 mm
DC Cutting diameter minimum
28 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
ZYL04001115
FamilyProducts
Gun Drill GTA 25D Ø18,5-28,0
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
ID Technical product number
4849444
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
306-01 - Twist drill for indexable inserts
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001115
LPR Protruding length
757 mm
LS Shank length
40 mm
LU Usable length
704 mm
Name Identifying order number
GTADP28000700JGR01
NOF Flute count
2
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
827 mm
Working process
BVB - Drilling
WT Weight of item
2.58 kg
