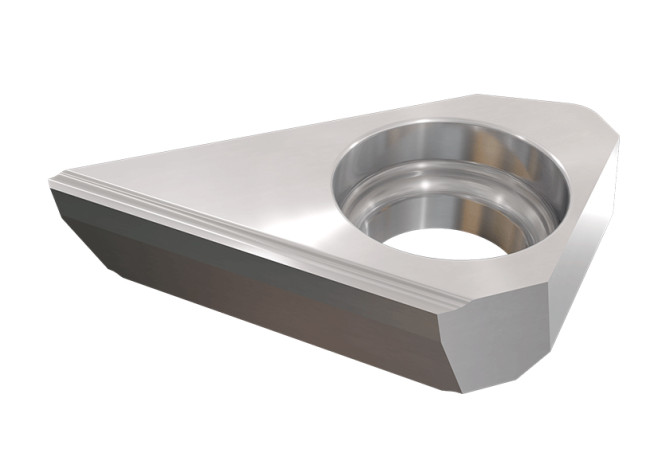

XCGT 060300-30DT IC808

Артикул: 3385780

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

IS-20494777064586

FamilyProducts

Inserts used on Chamfering Drill Holders for Chamfering and Drilling in One Operation

GRDMFG Grade manufacturers designation

IC808

ID Technical product number

3385780

INSL Insert length

12.3 mm

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$20494777064586

ISYC Subclass

201-00 - Regular Insert unspecified

LOC-03 ISO

IS$$20494777064586

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-20494777064586

Name Identifying order number

XCGT 060300-30DT IC808

S Insert thickness

2.8 mm

W1 Insert width

6.18 mm

Working process

No working processes available
