Главная Каталог продукции Toolunited 12 201-00 - Regular Insert unspecified TOGT 120405-DT IC908

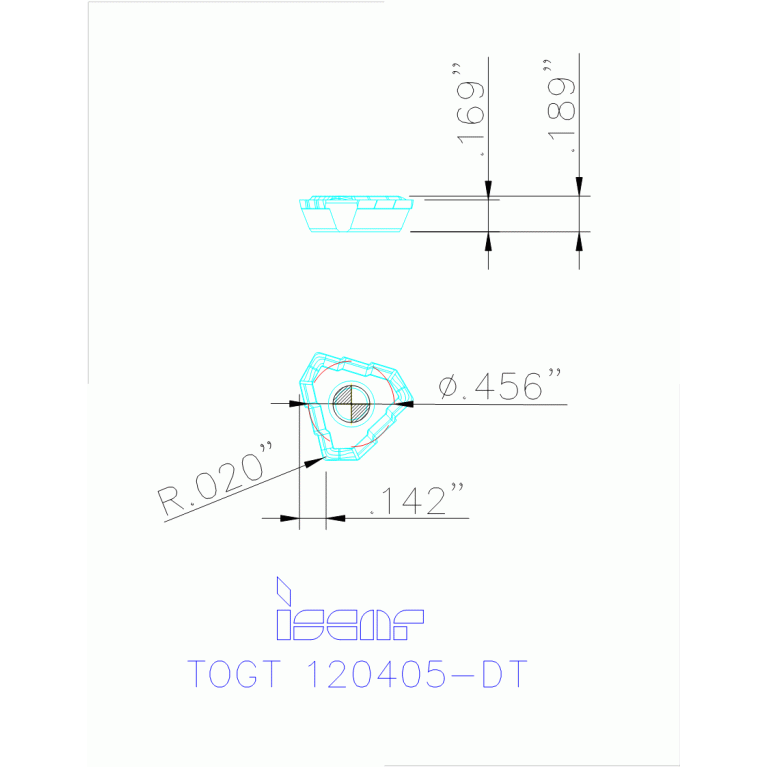

TOGT 120405-DT IC908

Артикул: 5567619

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

IS-856804215588453

FamilyProducts

Deep Drilling Inserts with 3 Chip Splitting Cutting Edges, a Positive Rake Chipbreaker and a Wiper

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

11.59 mm

ID Technical product number

5567619

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$856804215588453

ISYC Subclass

201-00 - Regular Insert unspecified

LOC-03 ISO

IS$$856804215588453

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-856804215588453

Name Identifying order number

TOGT 120405-DT IC908

RE Corner radius

0.5 mm

S Insert thickness

4.3 mm

Working process

No working processes available

WT Weight of item

0.01 kg
