Главная Каталог продукции Toolunited 12 201-00 - Regular Insert unspecified LOMU150504ER-GM PR1835

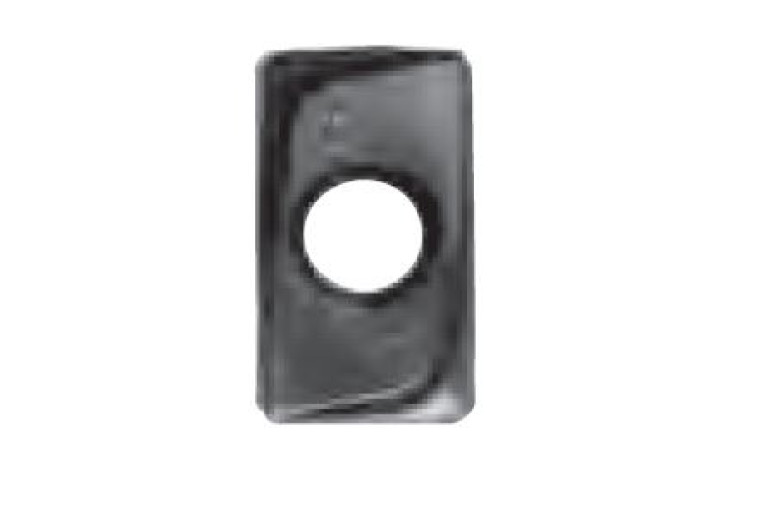

LOMU150504ER-GM PR1835

Артикул: TLU00079

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating

MGACOAT NANO EX

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

M30

CSP Coolant supply property

0 - Without coolant supply

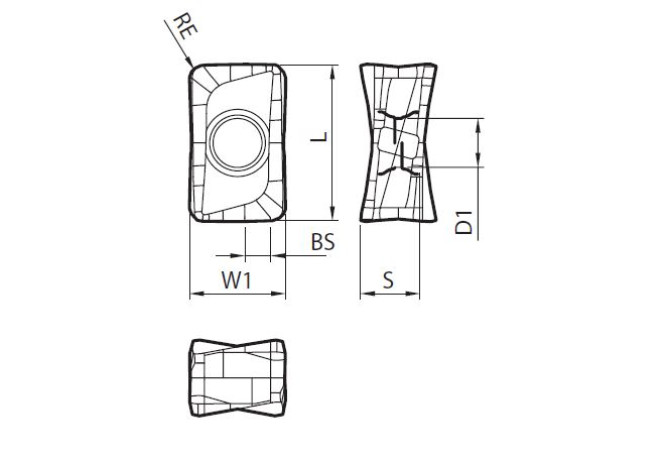

D1 Fixing hole diameter

4.8 mm

Delivery state valid from

4/21/2023

EPSR Insert included angle

90 Degree

FamilyProducts

MEW series insert for milling

GRDMFG Grade manufacturers designation

PR1835

GRDPRIO Standard designation of the grade main application

ID Technical product number

TLU00079

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

15.7 mm

Name Identifying order number

LOMU150504ER-GM PR1835

RE Corner radius

0.4 mm

S Insert thickness

5.6 mm

TCINS Tolerance class insert

W1 Insert width

9.2 mm

Working process

No working processes available
