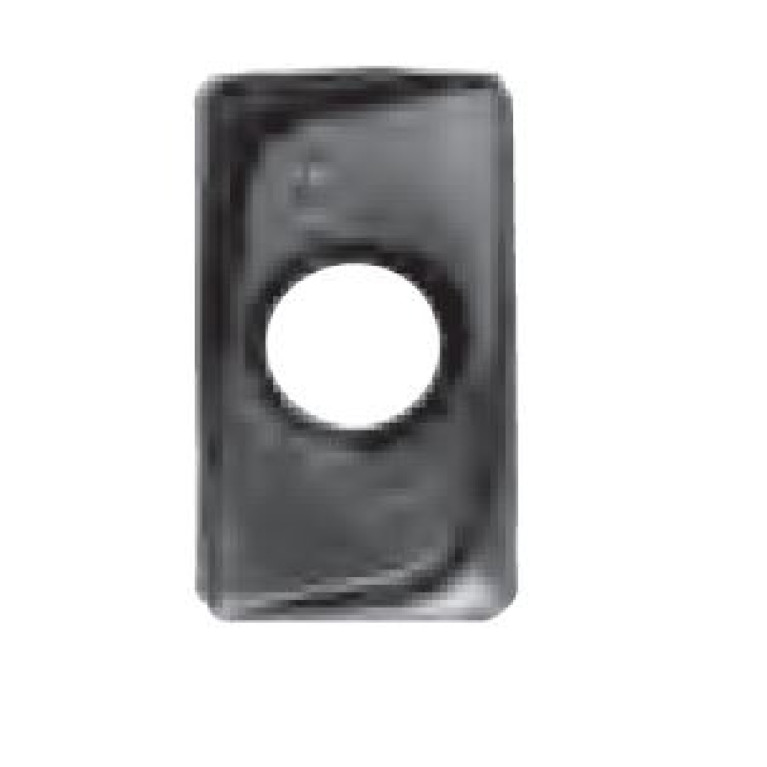

LOMU100404ER-GM PR1810
LOMU100404ER-GM PR1810
Артикул:
TLS00049
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
GM
COATN Coating
MGACOAT NANO EX
COMPC Company code
KYO - Kyocera
CRCLMFG Chip removal class mfg
K10
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.4 mm
Delivery state valid from
4/21/2023
EPSR Insert included angle
90 Degree
FamilyProducts
MEW series insert for milling
GRDMFG Grade manufacturers designation
PR1810
GRDPRIO Standard designation of the grade main application
HC
ID Technical product number
TLS00049
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
/
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
10.9 mm
Name Identifying order number
LOMU100404ER-GM PR1810
RE Corner radius
0.4 mm
S Insert thickness
4 mm
TCINS Tolerance class insert
M
W1 Insert width
6.6 mm
Working process
No working processes available
