Главная Каталог продукции Toolunited 12 201-09 - Octogonal insert ONMU09T512-GM YB9320

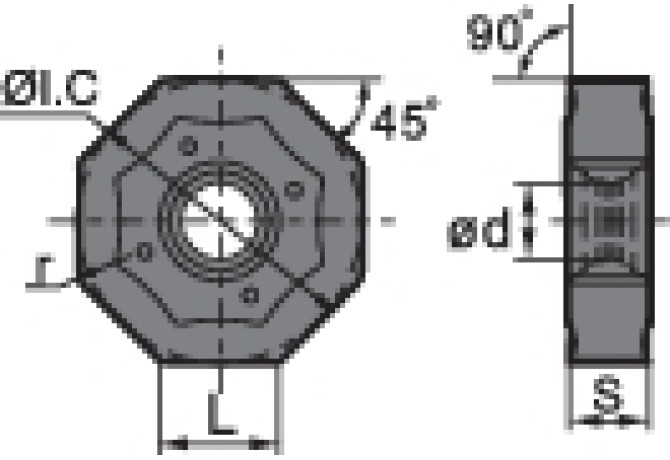

ONMU09T512-GM YB9320

Артикул: ONMU09T512-GM YB9320

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

7 mm

Delivery state valid from

8/1/2024

DIN

ZCC-ON09T5

EPSR Insert included angle

135 Degree

FamilyProducts

ON**milling insert

GRDMFG Grade manufacturers designation

YB9320

GRDPRIO Standard designation of the grade main application

M20-M40

IC Inscribed circle diameter

20.2 mm

ID Identifying order number

ONMU09T512-GM YB9320

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ZCC-ON09T5

RE Corner radius

1.2 mm

S Insert thickness

5.8 mm

S1 Insert thickness total

5.8 mm

TCINS Tolerance class insert

Working process

No working processes available
