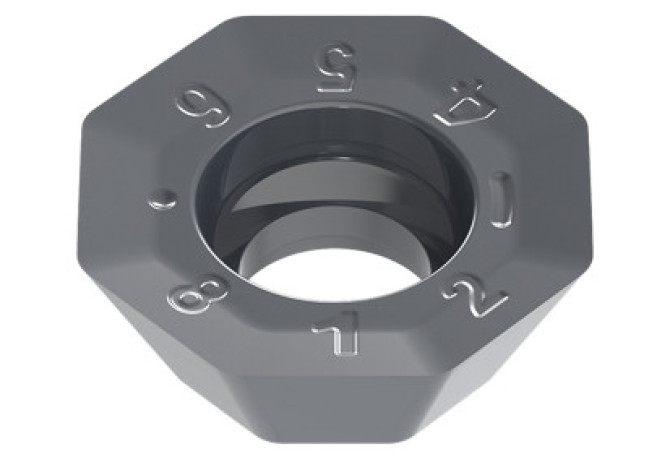

Главная Каталог продукции Toolunited 12 201-09 - Octogonal insert 5112201002

5112201002

Артикул: 5112201002

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

CBMD Chip breaker manufacturers designation

-F10

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

CTPX715

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

4.8 mm

Delivery state valid from

10/1/2022

EPSR Insert included angle

135 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M15

GRD3RD Standard designation of the grade 3rd application

HC-N10

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

12.7 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

Name Identifying order number

5112201002

RE Corner radius

1 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
