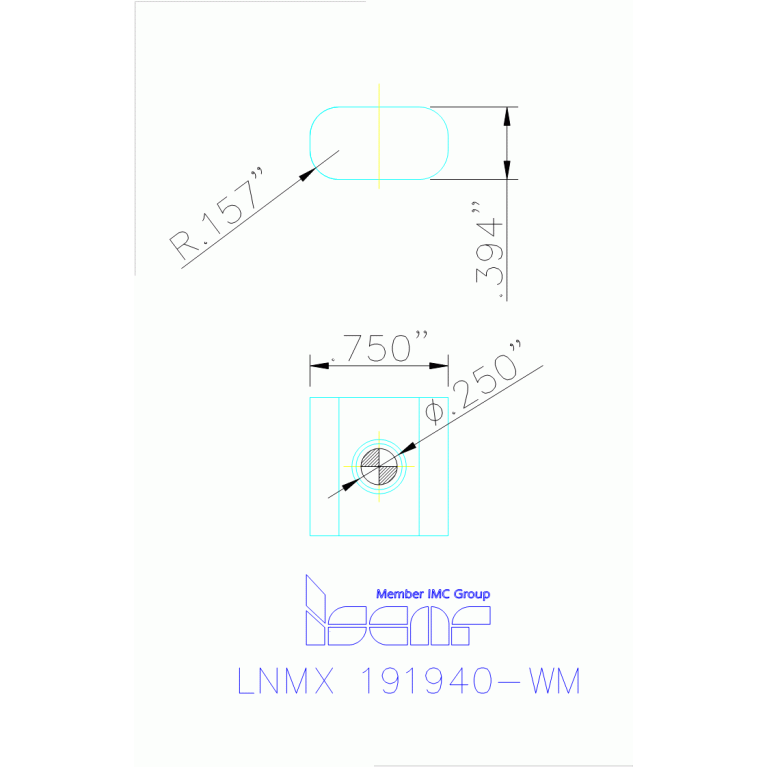

LNMX 191940-WM IC8250
LNMX 191940-WM IC8250
Артикул:
5595390
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
WM
CECC Cutting edge condition code
E - Rounded
COATN Coating
TiCN+Al2O3+TiN
COMPC Company code
IS - Iscar
D1 Fixing hole diameter
6.35 mm
Delivery state valid from
4/1/2022
DIN
LN1919402N
EPSR Insert included angle
90 Degree
FamilyProducts
Tangentially Clamped Inserts for Railroad Wheel Re-Turning
GRDMFG Grade manufacturers designation
IC8250
ID Technical product number
5595390
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$LN1919402NA$$40
ISYC Subclass
201-04 - Rectangular insert
L Cutting edge length
19.05 mm
LOC-03 ISO
ISO$LN1919402NA$$40
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
LN1919402N
Name Identifying order number
LNMX 191940-WM IC8250
RE Corner radius
4 mm
S Insert thickness
19.05 mm
W1 Insert width
10 mm
Working process
No working processes available
WT Weight of item
0.04 kg
