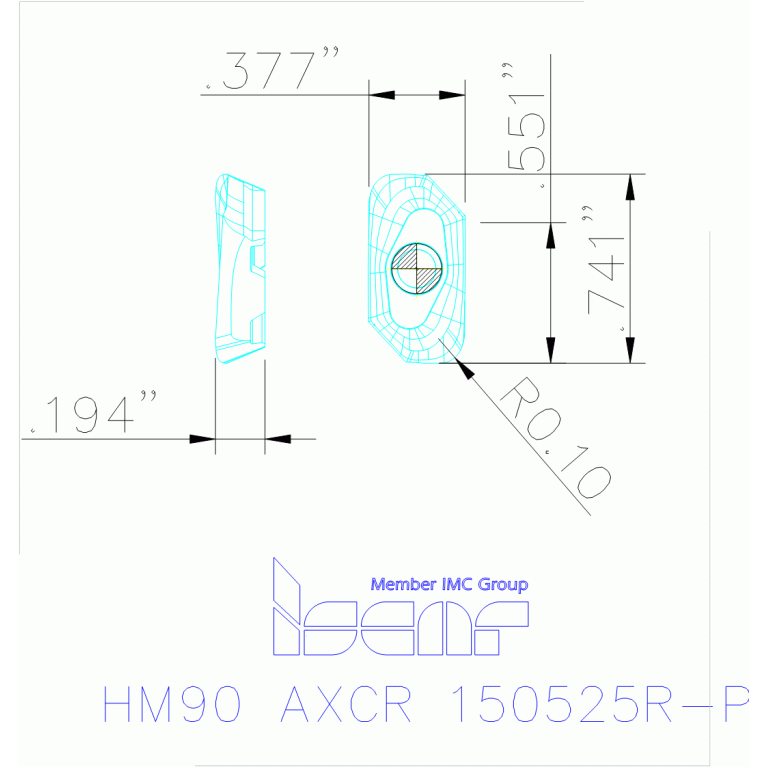

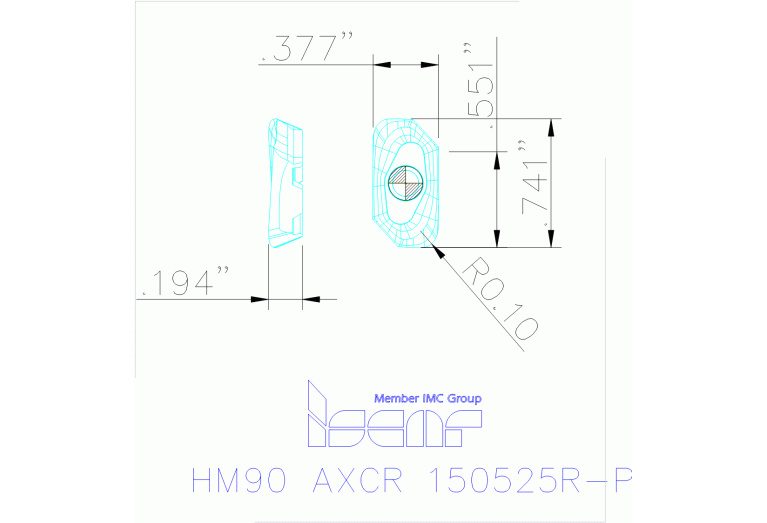

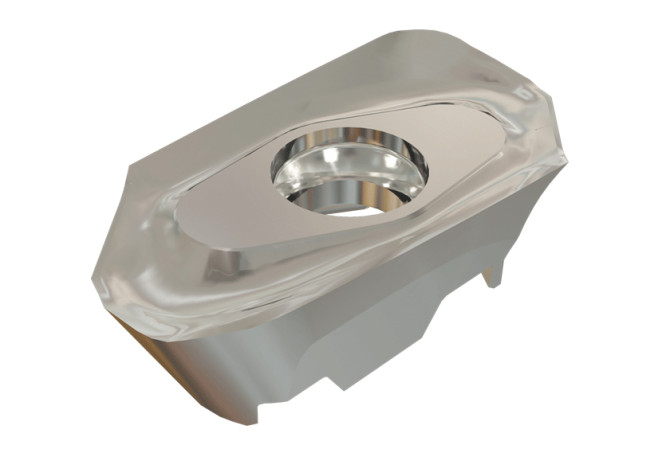

HM90 AXCR 150525R-P IC08

Артикул: 3358114

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

IS-125187168249902

FamilyProducts

Super Positive Inserts with a Polished Rake for Machining Aluminum

GRDMFG Grade manufacturers designation

IC08

ID Technical product number

3358114

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$125187168249902

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

19.2 mm

LE Cutting edge effective length

14 mm

LOC-03 ISO

IS$$125187168249902

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-125187168249902

Name Identifying order number

HM90 AXCR 150525R-P IC08

RE Corner radius

2.5 mm

S Insert thickness

5 mm

W1 Insert width

10 mm

Working process

No working processes available

WT Weight of item

0.01 kg
