Главная Каталог продукции Toolunited 12 201-04 - Rectangular insert HM90 APCR 220605R-P IC08

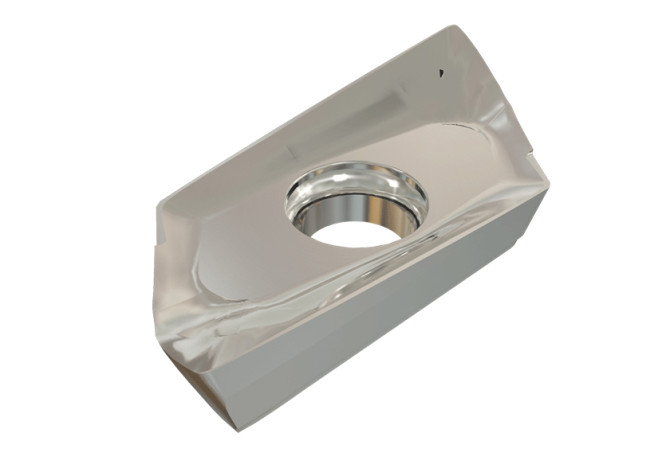

HM90 APCR 220605R-P IC08

Артикул: 3358129

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

IS-67423739238768

FamilyProducts

Super Positive Inserts with a Polished Rake for Machining Aluminum

GRDMFG Grade manufacturers designation

IC08

ID Technical product number

3358129

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$67423739238768

ISYC Subclass

201-04 - Rectangular insert

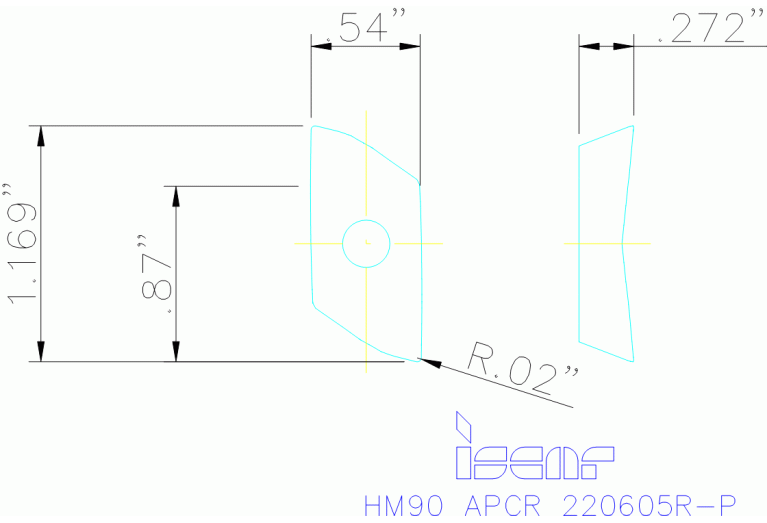

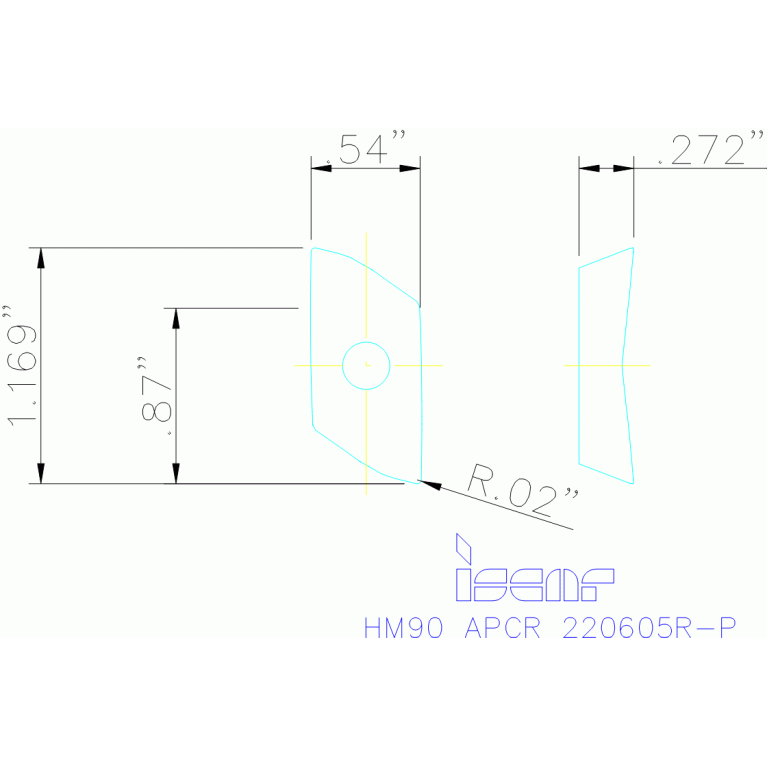

L Cutting edge length

30.5 mm

LE Cutting edge effective length

22.1 mm

LOC-03 ISO

IS$$67423739238768

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-67423739238768

Name Identifying order number

HM90 APCR 220605R-P IC08

RE Corner radius

0.5 mm

S Insert thickness

6.9 mm

W1 Insert width

13.9 mm

Working process

No working processes available

WT Weight of item

0.02 kg
