Главная Каталог продукции Toolunited 12 202-02 - Insert, one cutting edge for grooving and parting, self clamping DX18-4F400N04-UF4 WSM33G

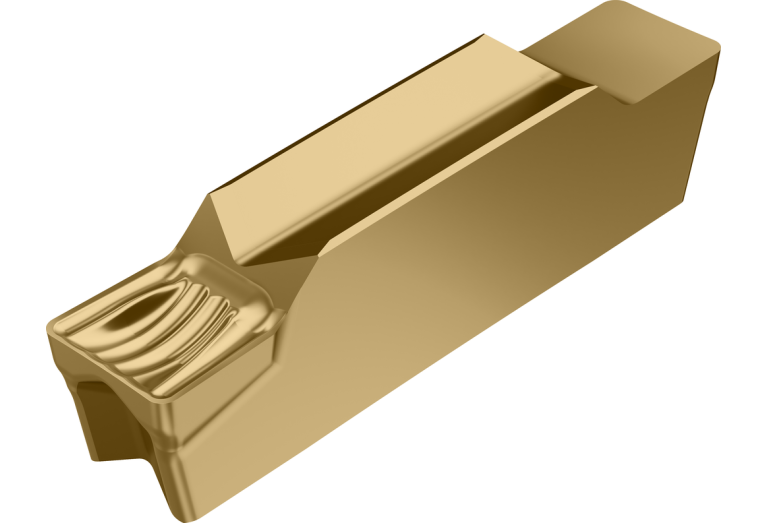

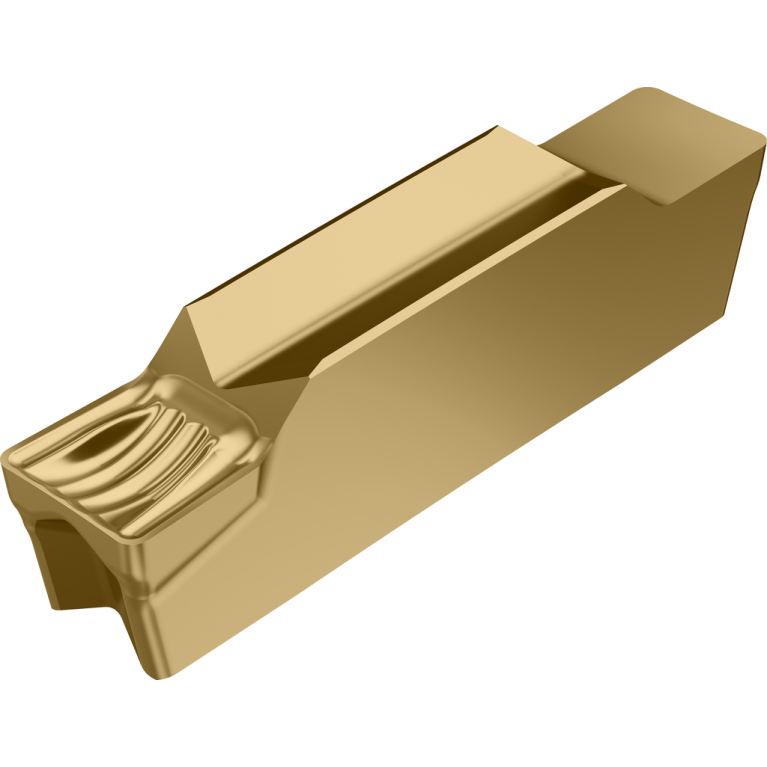

DX18-4F400N04-UF4 WSM33G

Артикул: 8493010

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

UF4

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiAlN/TiSiN

COMPC Company code

W - Walter

CW Cutting width

4 mm

Delivery state valid from

12/1/2023

DIN

W-DX1840007$$FX$$

FamilyProducts

Grooving and recessing – cutting inserts DX

GRDMFG Grade manufacturers designation

WSM33G

ID Technical product number

8493010

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

18.5 mm

Interface codes

J6 / J61

ISO

WR$$DX1840007$$FX$$

ISYC Subclass

202-02 - Insert, one cutting edge for grooving and parting, self clamping

LOC-03 ISO

WR$$DX1840007$$FX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-DX1840007$$FX$$

Name Identifying order number

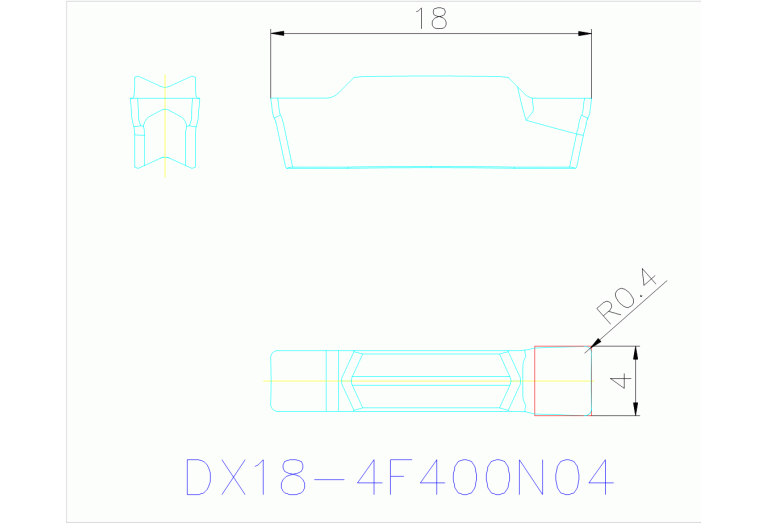

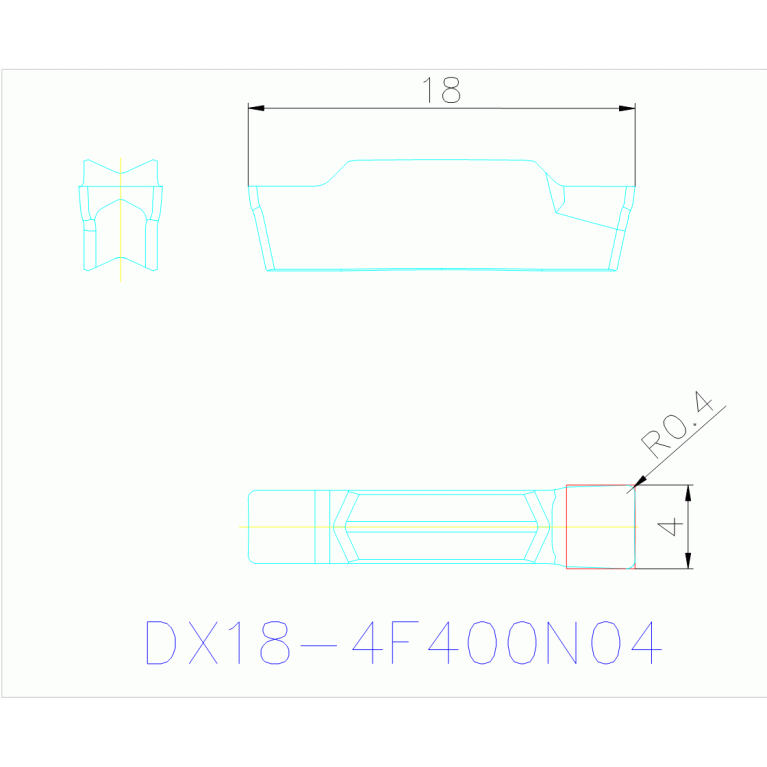

DX18-4F400N04-UF4 WSM33G

NOF Flute count

PFS Profile form

REL Corner radius left hand

0.4 mm

RER Corner radius right hand

0.4 mm

S Insert thickness

4.03 mm

S1 Insert thickness total

5.31 mm

TCE Tipped cutting edge code

Working process

DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving,EEA - Grooving and cutting off

WT Weight of item

0.004 kg
