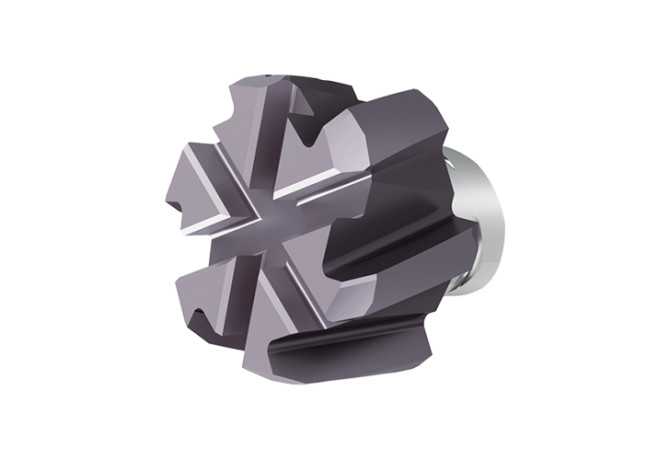

Главная Каталог продукции Toolunited 12 311-05 - Solid shell reamer XLB12000R72

XLB12000R72

Артикул: 6229613

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

IL-K-XT4

FamilyProducts

Reaming head XLB Ø 8,0 - 12,0 mm

FHA Flute helix angle

20 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

HC-M15-M35

GRD3RD Standard designation of the grade 3rd application

HC-K20-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-P15-P30

HAND Cutting direction

R - Right

ID Technical product number

6229613

Interface codes

J6 /

ISYC Subclass

311-05 - Solid shell reamer

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-K-XT4

Materials

P,M,K

Name Identifying order number

XLB12000R72

NOF Flute count

OAL Overall length

10.5 mm

PLANG Plug angle

PLGL Plug length

1.07 mm

Working process

REI - Cylindrical reaming

WT Weight of item

0.008 kg
