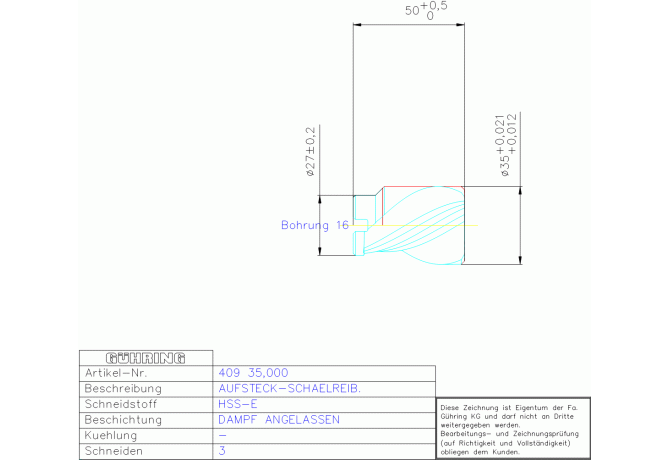

Главная Каталог продукции Toolunited 12 311-05 - Solid shell reamer 409 35.000

409 35.000

Артикул: 9004090350000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

36 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

0 - Equal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

35 mm

DCONMSUD Shank diameter upper limit

0.018 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DF Flange diameter

27 mm

DIN

FDA01601200

FamilyProducts

HSS-E AUFST-REIBAHLE 35,000 DIN 219RN FO

FHA Flute helix angle

45 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

HSS-E

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9004090350000

Interface codes

J6 /

ISYC Subclass

311-05 - Solid shell reamer

LF Functional length

48.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01601200

Name Identifying order number

409 35.000

NOF Flute count

OAL Overall length

50 mm

PLANG Plug angle

PLGL Plug length

1.4 mm

RESYC Reaming tool style code

2 - For though-holes

STDLET Standard letter to the standard number

STDNO Standard

DIN 219

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.215 kg
