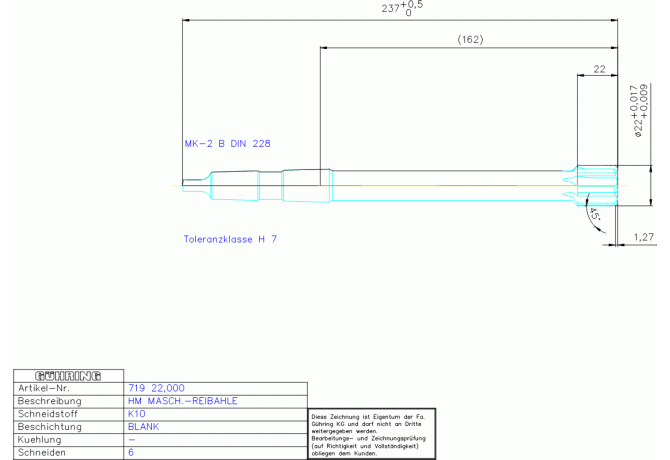

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 719 22.000

719 22.000

Артикул: 9007190220000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

22 mm

BMC Body material code

B - Steel body with brazed carbide inserts

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

2 - Extreme unequal (e.g. 45-60-75 degree)

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

22 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00202085

FamilyProducts

HM MASCH,-REIBAHLEN 22,000 DIN 8051~A RN

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HM-BEST,

GRDMFG Grade manufacturers designation

HM-BEST,

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

9007190220000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

160.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202085

LPR Protruding length

162 mm

LS Shank length

80 mm

LU Usable length

157 mm

Name Identifying order number

719 22.000

NOF Flute count

OAL Overall length

237 mm

PLANG Plug angle

PLGL Plug length

1.3 mm

RESYC Reaming tool style code

0 - For through-holes and blind holes

STDLET Standard letter to the standard number

STDNO Standard

DIN8051~

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.379 kg
