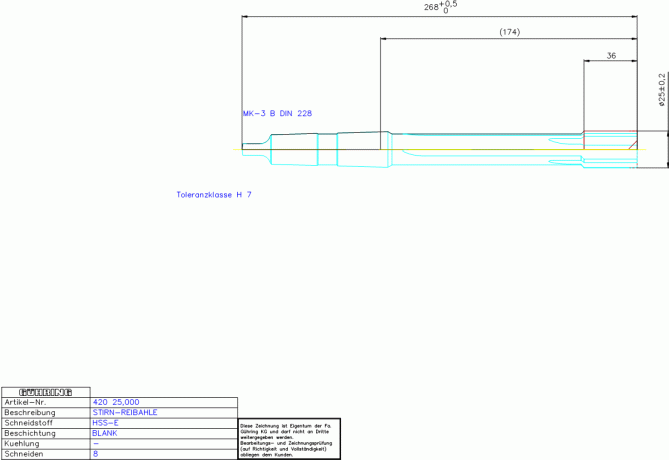

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 420 25.000

420 25.000

Артикул: 9004200250000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

36 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

1 - Unequal (e.g. 58-60-62 degree)

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

25 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00302085

FamilyProducts

HSS-E MA,-REIBAHLE 25,000 WN 38RN MKSTIR

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HSS-E

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9004200250000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

174 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0030

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00302085

LPR Protruding length

174 mm

LS Shank length

99 mm

LU Usable length

169 mm

Name Identifying order number

420 25.000

NOF Flute count

OAL Overall length

268 mm

RESYC Reaming tool style code

0 - For through-holes and blind holes

STDNO Standard

WN 38

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.811 kg
