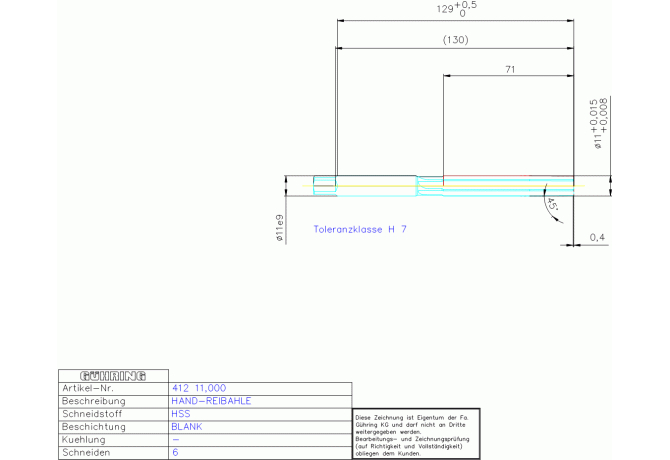

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 412 11.000

412 11.000

Артикул: 9004120110000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

71 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

1 - Unequal (e.g. 58-60-62 degree)

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

11 mm

DCONMSLD Shank diameter lower limit

-0.075 mm

DCONMSUD Shank diameter upper limit

-0.032 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01102105

FamilyProducts

HSS HAND-REIBAHLE 11,000 DIN206-A RN ZYL

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9004120110000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0110

LOC-03 DCONMS Diameter

11 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

e$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01102105

LPR Protruding length

130 mm

LS Shank length

56 mm

LU Usable length

86 mm

Name Identifying order number

412 11.000

NOF Flute count

OAL Overall length

142 mm

PLANG Plug angle

PLGL Plug length

0.4 mm

RESYC Reaming tool style code

0 - For through-holes and blind holes

STDLET Standard letter to the standard number

STDNO Standard

DIN 206

TCDCONMS ISO-tolerance class shank diameter

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.08 kg
