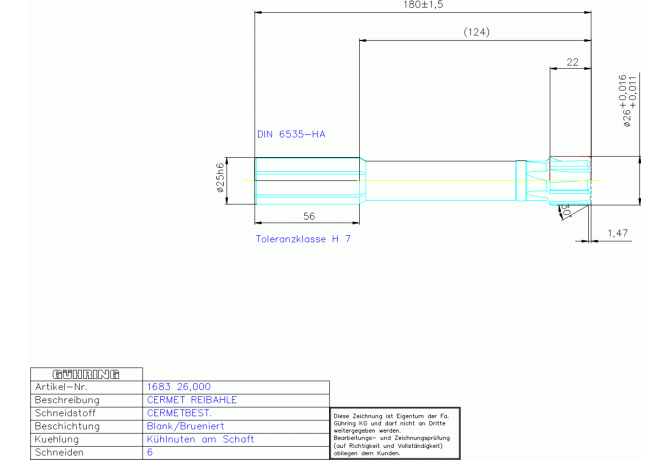

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 1683 26.000

1683 26.000

Артикул: 9016830260000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

22 mm

BMC Body material code

B - Steel body with brazed carbide inserts

CNSC Coolant entry style code

8 - With coolant supply (entry), axial groove at shank

COATN Coating / Покрытие

BRUENIERT

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

2 - Extreme unequal (e.g. 45-60-75 degree)

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DC Cutting diameter minimum

26 mm

DCONMSLD Shank diameter lower limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL02500115

FamilyProducts

CERMET MA,-REIBAHLE HR500 GD H7 HA

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

CERMETBE

GRDMFG Grade manufacturers designation

CERMETBE

HAND Cutting direction

R - Right

ID Technical product number

9016830260000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

178.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

LPR Protruding length

124 mm

LS Shank length

56 mm

LU Usable length

124 mm

Name Identifying order number

1683 26.000

NOF Flute count

OAL Overall length

180 mm

PLANG Plug angle

PLGL Plug length

1.5 mm

RESYC Reaming tool style code

2 - For though-holes

STDNO Standard

WN 1680

TCDCONMS ISO-tolerance class shank diameter

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.9 kg
