1678 6.000
1678 6.000
Артикул:
9016780060000
В наличии

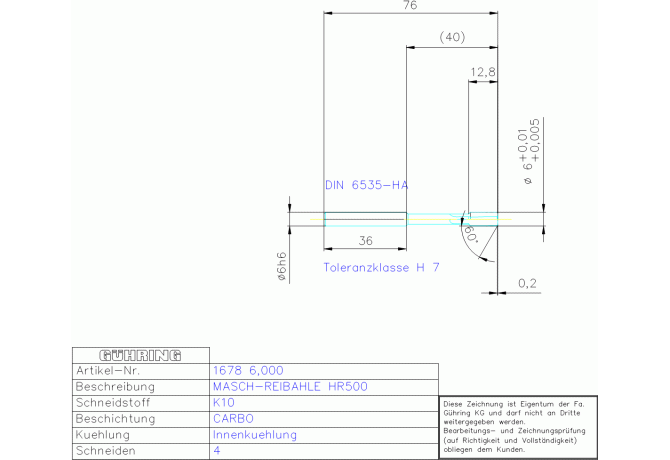

Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
12 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CPDF Cutting pitch differential
2 - Extreme unequal (e.g. 45-60-75 degree)
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
6 mm
DCONMSLD Shank diameter lower limit
-0.008 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00600115
FamilyProducts
VHM CARBO MA,-REIBAHLE KZ-HR500 S WN HA
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HF
HAND Cutting direction
R - Right
ID Technical product number
9016780060000
Interface codes
J6 /
ISYC Subclass
311-01 - Solid cylindrical reamer
LF Functional length
75.7 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600115
LPR Protruding length
40 mm
LS Shank length
36 mm
LU Usable length
40 mm
Name Identifying order number
1678 6.000
NOF Flute count
4
OAL Overall length
76 mm
PLANG Plug angle
60
PLGL Plug length
0.4 mm
RESYC Reaming tool style code
1 - For blind hole
STDNO Standard
WN
TCDCONMS ISO-tolerance class shank diameter
h6
TCDH ISO tolerance class for drilling result
H7
Working process
REI - Cylindrical reaming
WT Weight of item
0.026 kg
