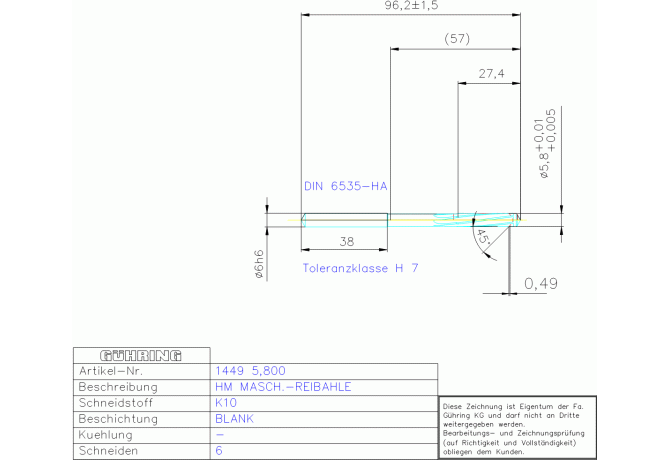

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 1449 5.800

1449 5.800

Артикул: 9014490058000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

2 - Extreme unequal (e.g. 45-60-75 degree)

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

5.8 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00600105

FamilyProducts

VHM NC-MASCH,REIBAHLE Ø 5,8 TOL. H7

FHA Flute helix angle

8 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9014490058000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

92.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

57 mm

LS Shank length

36 mm

LU Usable length

57 mm

Name Identifying order number

1449 5.800

NOF Flute count

OAL Overall length

93 mm

PLANG Plug angle

PLGL Plug length

0.5 mm

RESYC Reaming tool style code

2 - For though-holes

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.032 kg
