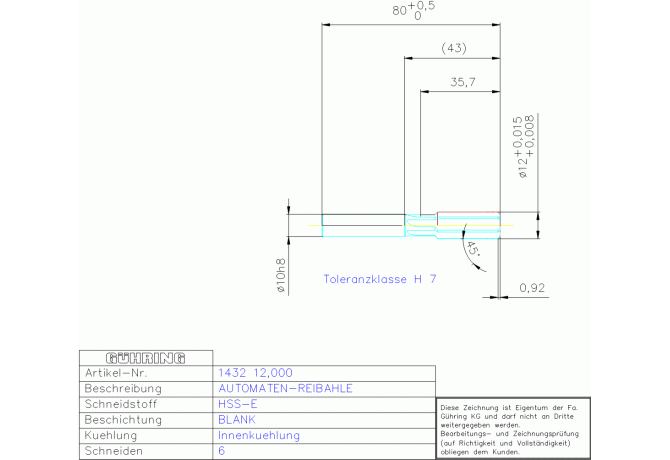

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 1432 12.000

1432 12.000

Артикул: 9014320120000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

28 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

1 - Unequal (e.g. 58-60-62 degree)

CRCLDIN Chip removal class

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

12 mm

DCONMSLD Shank diameter lower limit

-0.022 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01000115

FamilyProducts

HSS-E AUT,-REIBAHLE KZ DIN8089-A RN

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HSS-E

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9014320120000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

79.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$08

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000115

LPR Protruding length

43 mm

LS Shank length

37 mm

LU Usable length

43 mm

Name Identifying order number

1432 12.000

NOF Flute count

OAL Overall length

80 mm

PLANG Plug angle

PLGL Plug length

0.9 mm

RESYC Reaming tool style code

1 - For blind hole

STDLET Standard letter to the standard number

STDNO Standard

DIN8089

TCDCONMS ISO-tolerance class shank diameter

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.048 kg
