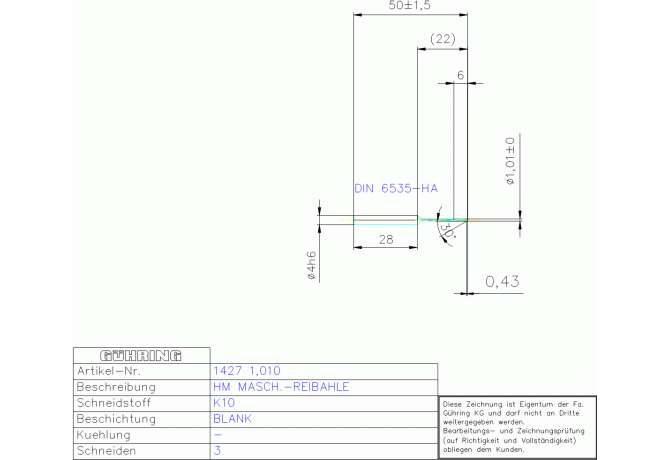

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 1427 1.010

1427 1.010

Артикул: 9014270010100

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

6 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

0 - Equal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

1.01 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00400105

FamilyProducts

VHM NC-MASCH,REIB. WN R N8 LG TOL+0,004

FHA Flute helix angle

8 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9014270010100

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

49.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

22 mm

LS Shank length

28 mm

LU Usable length

20.5 mm

Name Identifying order number

1427 1.010

NOF Flute count

OAL Overall length

50 mm

PLANG Plug angle

PLGL Plug length

0.4 mm

RESYC Reaming tool style code

2 - For though-holes

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

REI - Cylindrical reaming

WT Weight of item

0.005 kg
