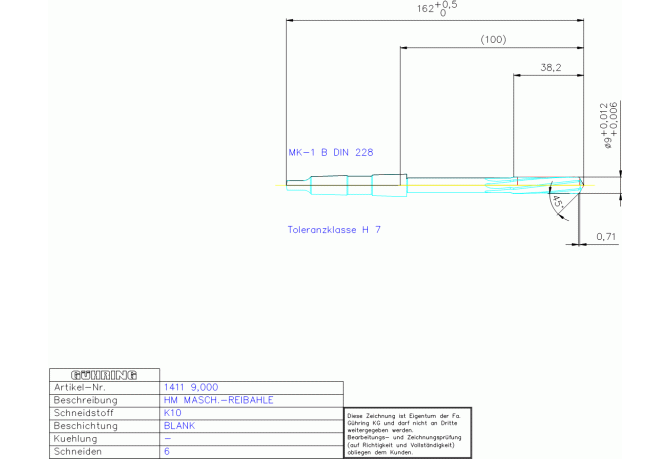

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 1411 9.000

1411 9.000

Артикул: 9014110090000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

36 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

2 - Extreme unequal (e.g. 45-60-75 degree)

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

9 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00102085

FamilyProducts

VHM MA,-REIBAHLEN EU 9,000 DIN8094-B RN

FHA Flute helix angle

7 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9014110090000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

99.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0010

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00102085

LPR Protruding length

100 mm

LS Shank length

65.5 mm

LU Usable length

96.5 mm

Name Identifying order number

1411 9.000

NOF Flute count

OAL Overall length

162 mm

PLANG Plug angle

PLGL Plug length

0.7 mm

RESYC Reaming tool style code

2 - For though-holes

STDLET Standard letter to the standard number

STDNO Standard

DIN8094~

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.108 kg
