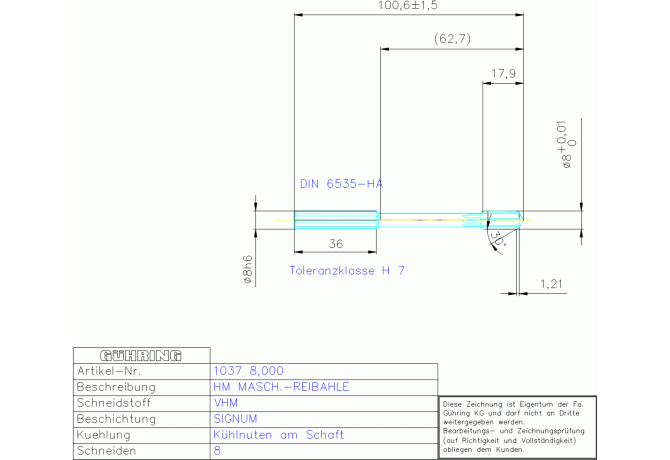

Главная Каталог продукции Toolunited 12 311-01 - Solid cylindrical reamer 1037 8.000

1037 8.000

Артикул: 9010370080000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

16 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

8 - With coolant supply (entry), axial groove at shank

COATN Coating

SIGNUM-BESCHICHTET

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

2 - Extreme unequal (e.g. 45-60-75 degree)

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DC Cutting diameter minimum

8 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00800115

FamilyProducts

VHM HR500 REI,KK EU SIGNUM F.DL GG

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9010370080000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

99.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LPR Protruding length

65 mm

LS Shank length

36 mm

LU Usable length

65 mm

Name Identifying order number

1037 8.000

NOF Flute count

OAL Overall length

101 mm

PLANG Plug angle

PLGL Plug length

1.2 mm

RESYC Reaming tool style code

2 - For though-holes

STDNO Standard

WN 1036

TCDCONMS ISO-tolerance class shank diameter

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.057 kg
