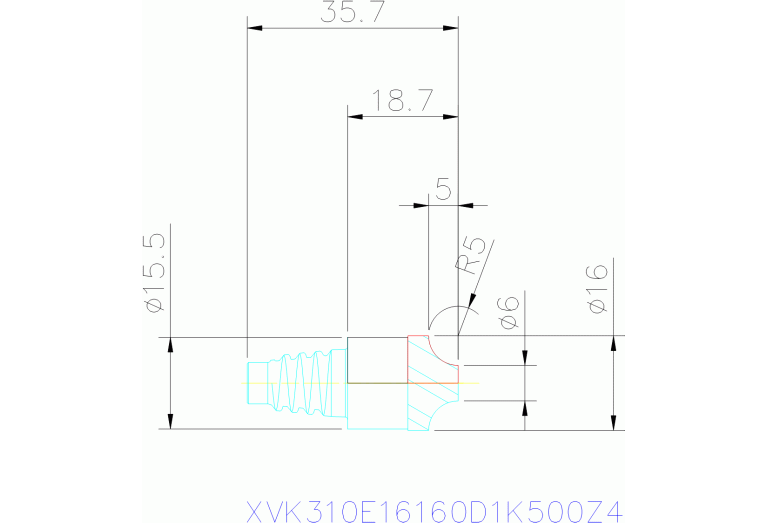

XVK310E16160D1K500Z4 SIRA

Артикул: 10138000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

5 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

SIRON-A

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

6 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

16 mm

Delivery state valid from

12/1/2023

DIN

SMM01600305

FamilyProducts

XVK310E16160D1K500Z4 SIRA

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

SIRA

HAND Cutting direction

R - Right

ID Technical product number

10138000

Interface codes

J6 /

ISYC Subclass

303-08 - Rounded profile end mill, concave

LF Functional length

18.7 mm

LH Head length

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SMM

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SMM01600305

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

XVK310E16160D1K500Z4 SIRA

NameAnsi Identifying order number inch alternative

XVK310E16160D1K500Z4

Working process

No working processes available

WT Weight of item

0.052 kg

ZEFP Peripheral effective cutting edge count
