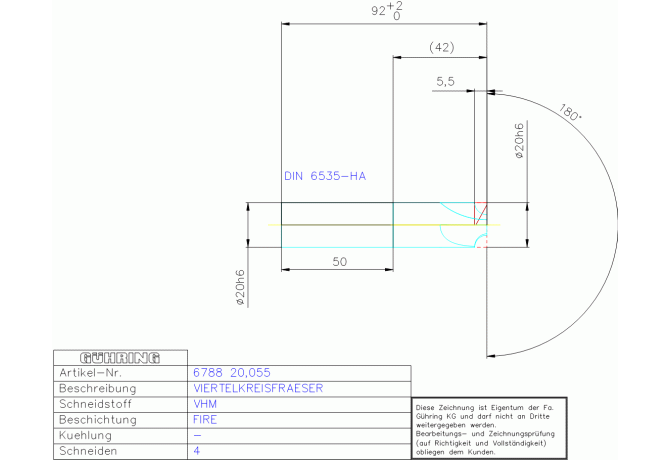

Главная Каталог продукции Toolunited 12 303-08 - Rounded profile end mill, concave 6788 20.055

6788 20.055

Артикул: 9067880200550

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

5.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

9.2 mm

DCONMSLD Shank diameter lower limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

20 mm

Delivery state valid from

12/1/2021

DIN

ZYL02000105

FamilyProducts

VHM FIRE VIERTELKREIS FRA WN RN HA

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9067880200550

Interface codes

J6 /

ISYC Subclass

303-08 - Rounded profile end mill, concave

LF Functional length

92 mm

LN Neck length

42 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

42 mm

LS Shank length

50 mm

Name Identifying order number

6788 20.055

OAL Overall length

92 mm

PRFRAD Profile radius 1

5.5 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FPR - Profile milling

WT Weight of item

0.409 kg

ZEFP Peripheral effective cutting edge count
