Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric Z4SM22UA150

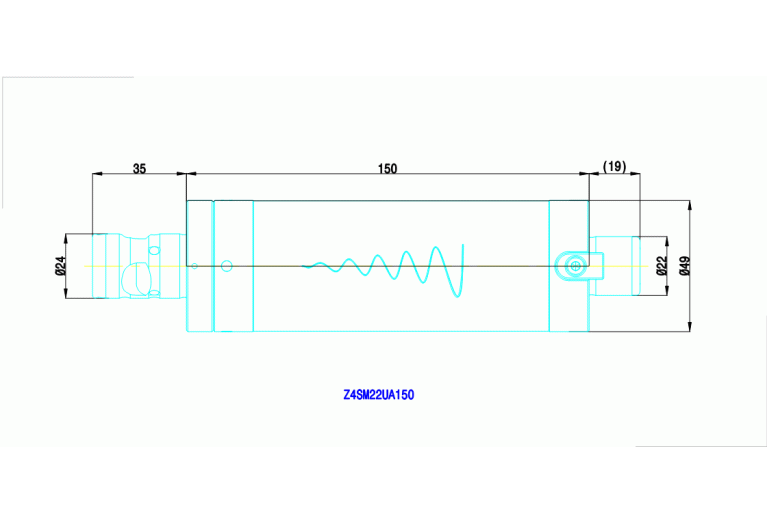

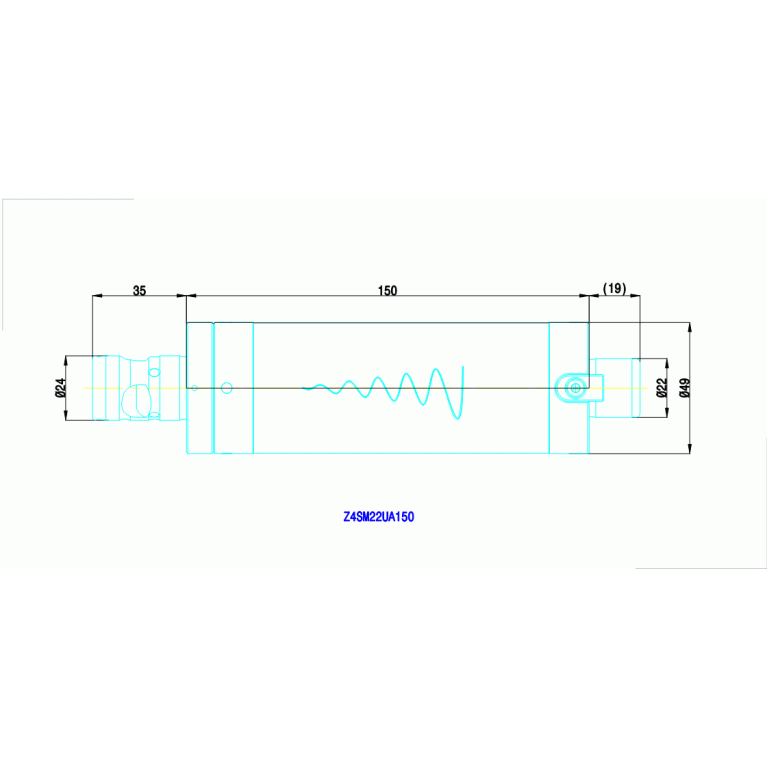

Z4SM22UA150

Z4SM22UA150 Z4SM22UA150 Z4SM22UA150 Z4SM22UA150

Z4SM22UA150

Ingersoll
Артикул: 3711971
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0220
DCONWS Diameter
22 mm
DCONXWS Connection diameter max
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
ITC04000215
FamilyProducts
Center Pin anti vibration Z4SM/Z5SM
HAND Cutting direction
N - Neutral
ID Technical product number
3711971
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0220
LOC-01 DCONWS Diameter
22 mm
LOC-01 DCONXWS Connection diameter max
12 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02200210
LOC-02 DCONWS Diameter
22 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IL-K-620
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ITC Ingersoll Tool connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
49 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ITC04000215
LPR Protruding length
150 mm
Name Identifying order number
Z4SM22UA150
OAL Overall length
204 mm
THSZMS Connection thread nominal size machine side
M10
WT Weight of item
2.9 kg
