Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric SK40 HYDRO 16X64.5 HD

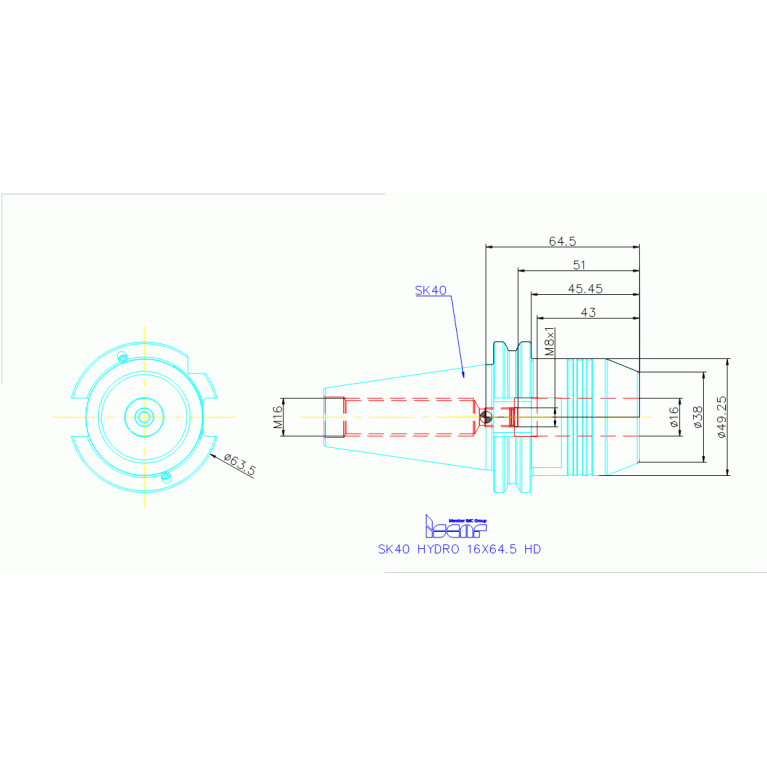

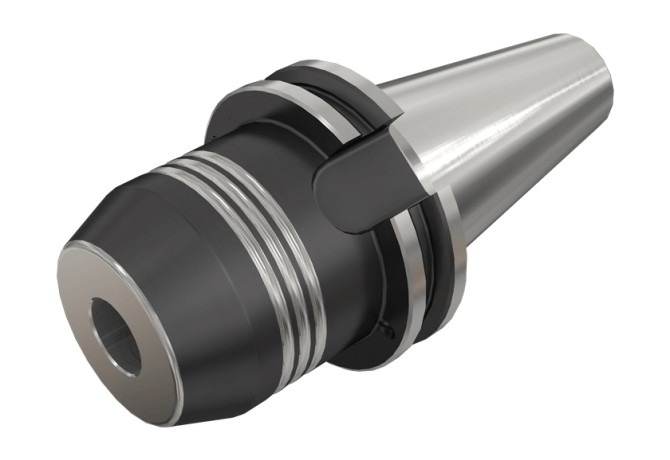

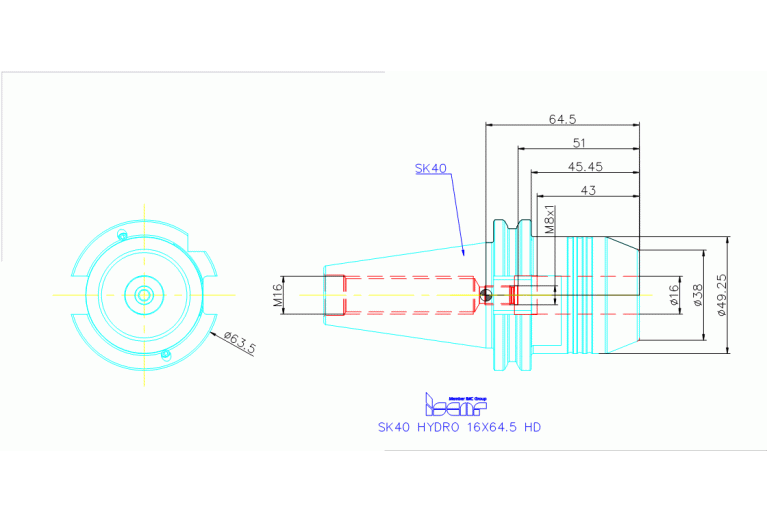

SK40 HYDRO 16X64.5 HD

Артикул: 3343652

В наличии

В корзину

Описание

Характеристики

BD Body diameter

49.25 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

63.55 mm

DIN

SKG04001795

FamilyProducts

Heavy Duty, Short Hydraulic Chucks With DIN69871 form ADB shanks

ID Technical product number

3343652

Interface codes

J6 / J61

ISO

SKG17C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

45.45 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 ISO

ZYL01G1600h$06

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01600115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SKG17C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04001795

LPR Protruding length

64.5 mm

Name Identifying order number

SK40 HYDRO 16X64.5 HD

OAL Overall length

132.75 mm

WT Weight of item

1.2 kg
