Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric MM S-B-L150/78-C32T12

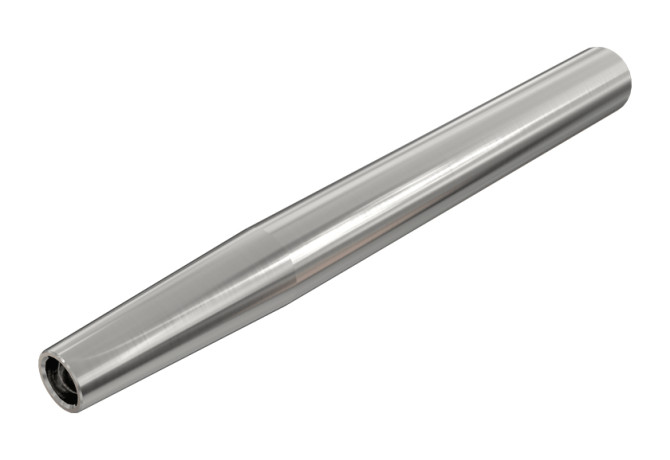

MM S-B-L150/78-C32T12

MM S-B-L150/78-C32T12 MM S-B-L150/78-C32T12

MM S-B-L150/78-C32T12

Iscar
Артикул: 3336785
В наличии
В корзину
Описание
Характеристики
BD Body diameter
18.3 mm
BHTA Body half taper angle 2
5 Degree
BHTA Body half taper angle 3
5 Degree
BHTA Body half taper angle 4
5 Degree
BHTA Body half taper angle 5
5 Degree
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SAI
CCUWS Connection code unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0120
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL03200105
FamilyProducts
Shanks Carrying Interchangeable Milling Heads
HAND Cutting direction
R - Right
ID Technical product number
3336785
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
78.3 mm
LF Functional length
150 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAI Screw mounting ISCAR
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0120
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAI01200185
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200105
Name Identifying order number
MM S-B-L150/78-C32T12
OAL Overall length
150 mm
RPMX Rotational speed maximum
34890 1/min
THSZWS Connection thread nominal size workpiece side
T12
WT Weight of item
0.78 kg
