Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric MM S-B-L085/32-C16T05

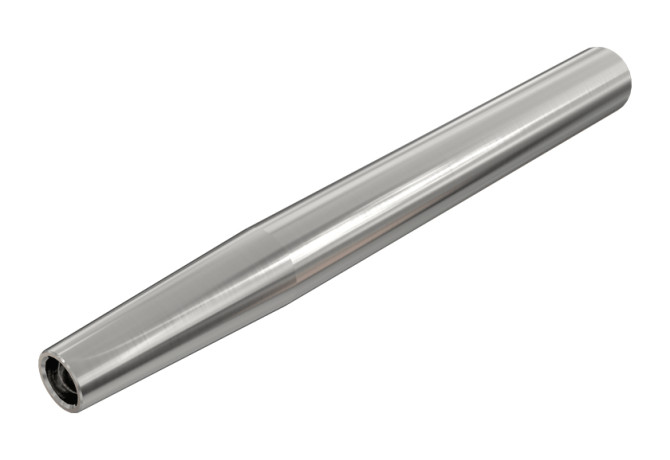

MM S-B-L085/32-C16T05

MM S-B-L085/32-C16T05 MM S-B-L085/32-C16T05

MM S-B-L085/32-C16T05

Iscar
Артикул: 3336781
В наличии
В корзину
Описание
Характеристики
BD Body diameter
7.6 mm
BHTA Body half taper angle 2
5 Degree
BHTA Body half taper angle 3
5 Degree
BHTA Body half taper angle 4
5 Degree
BHTA Body half taper angle 5
5 Degree
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SAI
CCUWS Connection code unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0050
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL01600105
FamilyProducts
Shanks Carrying Interchangeable Milling Heads
HAND Cutting direction
R - Right
ID Technical product number
3336781
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
32 mm
LF Functional length
85 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAI Screw mounting ISCAR
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0050
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAI00500185
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600105
Name Identifying order number
MM S-B-L085/32-C16T05
OAL Overall length
85 mm
RPMX Rotational speed maximum
41280 1/min
THSZWS Connection thread nominal size workpiece side
T05
WT Weight of item
0.11 kg
