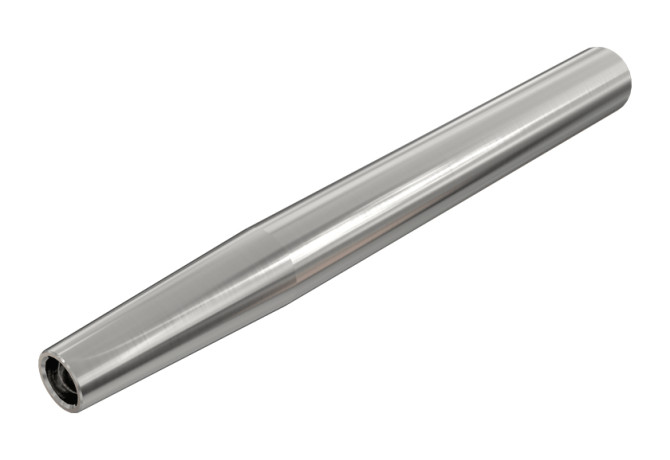

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric MM S-B-L080/24-C08-T04

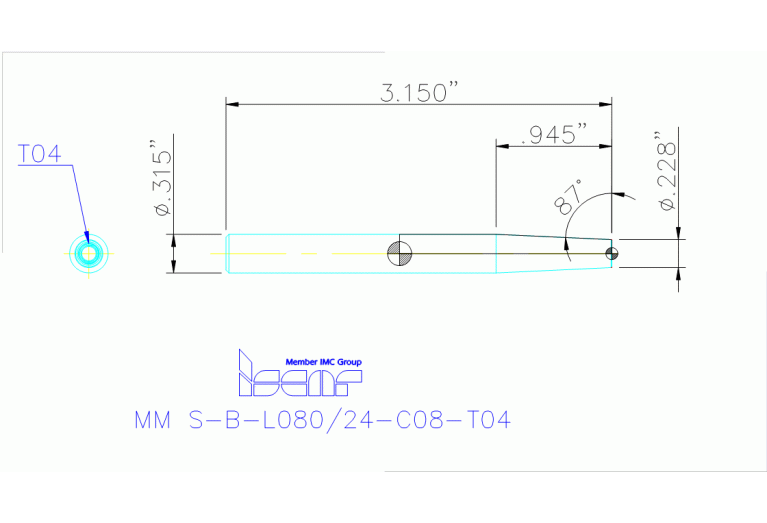

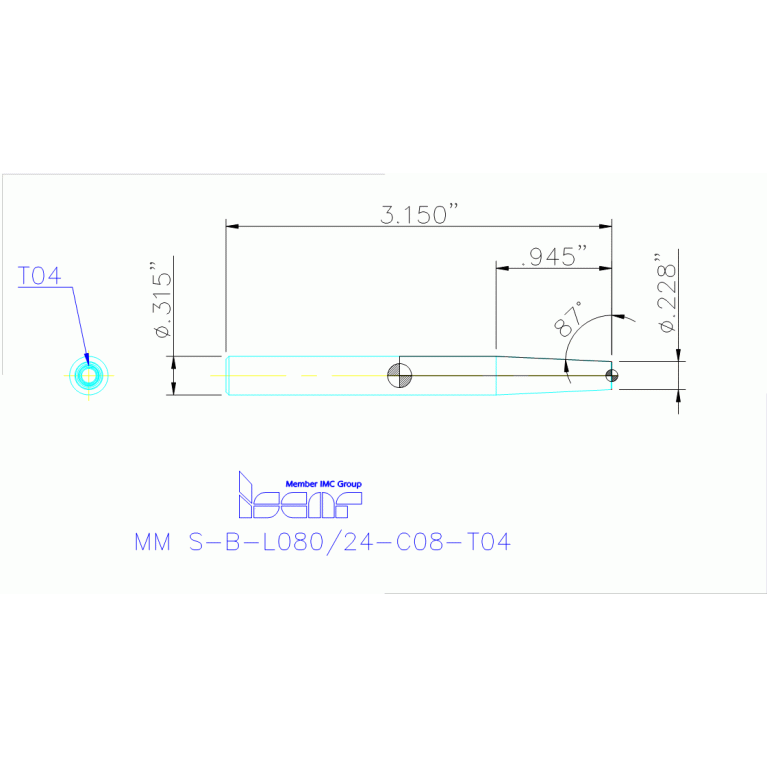

MM S-B-L080/24-C08-T04

Артикул: 3321541

В наличии

В корзину

Описание

Характеристики

BD Body diameter

5.8 mm

BHTA Body half taper angle 2

2.6 Degree

BHTA Body half taper angle 3

2.6 Degree

BHTA Body half taper angle 4

2.6 Degree

BHTA Body half taper angle 5

2.6 Degree

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAI

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0040

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00800105

FamilyProducts

Shanks Carrying Interchangeable Milling Heads

HAND Cutting direction

R - Right

ID Technical product number

3321541

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

24 mm

LF Functional length

80 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAI Screw mounting ISCAR

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01 CZCWS Connection size code

0040

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAI00400185

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

Name Identifying order number

MM S-B-L080/24-C08-T04

OAL Overall length

80 mm

RPMX Rotational speed maximum

60000 1/min

TCDCON ISO-tolerance class connection bore diameter

TCDCONMS ISO-tolerance class shank diameter

THSZWS Connection thread nominal size workpiece side

T04

WT Weight of item

0.04 kg
