Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric MM S-A-L130/080C16T10C-CH

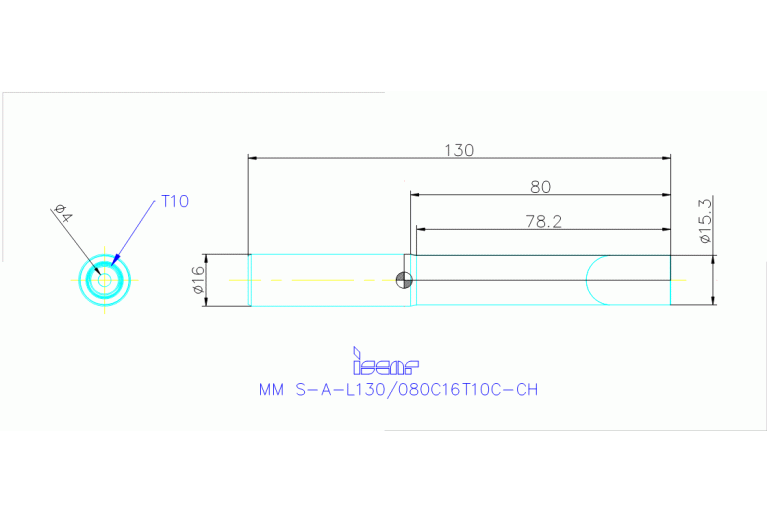

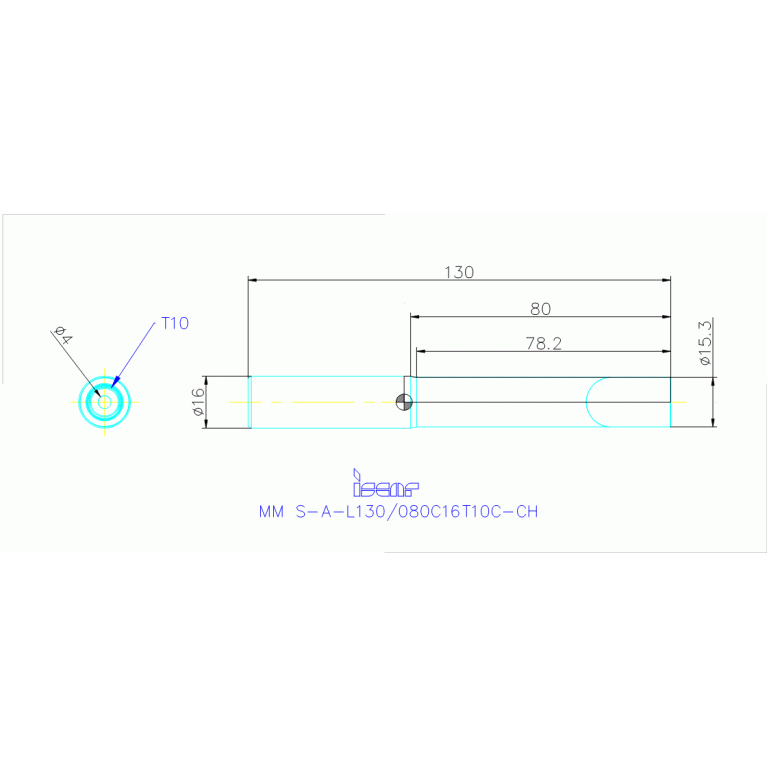

MM S-A-L130/080C16T10C-CH

Артикул: 3181252

В наличии

В корзину

Описание

Характеристики

BD Body diameter

15.3 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAI

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0100

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01600115

FamilyProducts

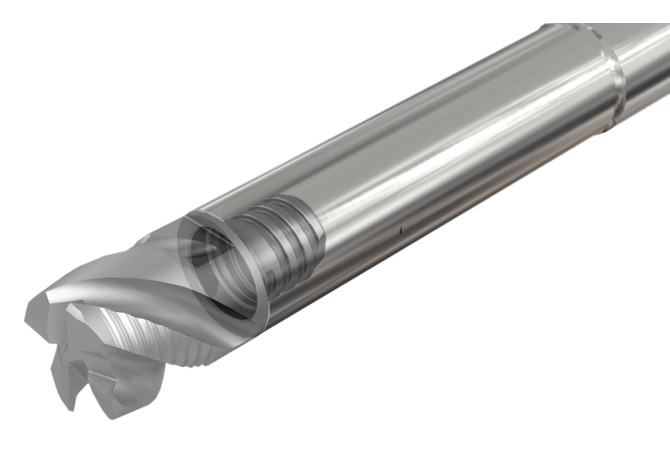

Stepped Cylindrical Shanks Carrying Interchangeable Milling Heads

HAND Cutting direction

R - Right

ID Technical product number

3181252

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

80 mm

LF Functional length

130 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAI Screw mounting ISCAR

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0100

LOC-01 ISO

SAI01C0100$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAI01000195

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

LPR Protruding length

82 mm

Name Identifying order number

MM S-A-L130/080C16T10C-CH

OAL Overall length

130 mm

RPMX Rotational speed maximum

24450 1/min

TCDCON ISO-tolerance class connection bore diameter

TCDCONMS ISO-tolerance class shank diameter

THSZWS Connection thread nominal size workpiece side

T10

WT Weight of item

0.32 kg
