Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric MM S-A-L085/36-C12T08C

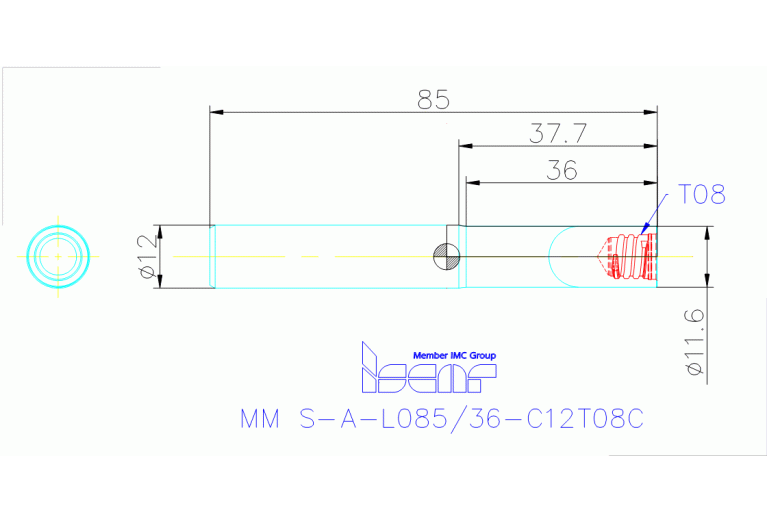

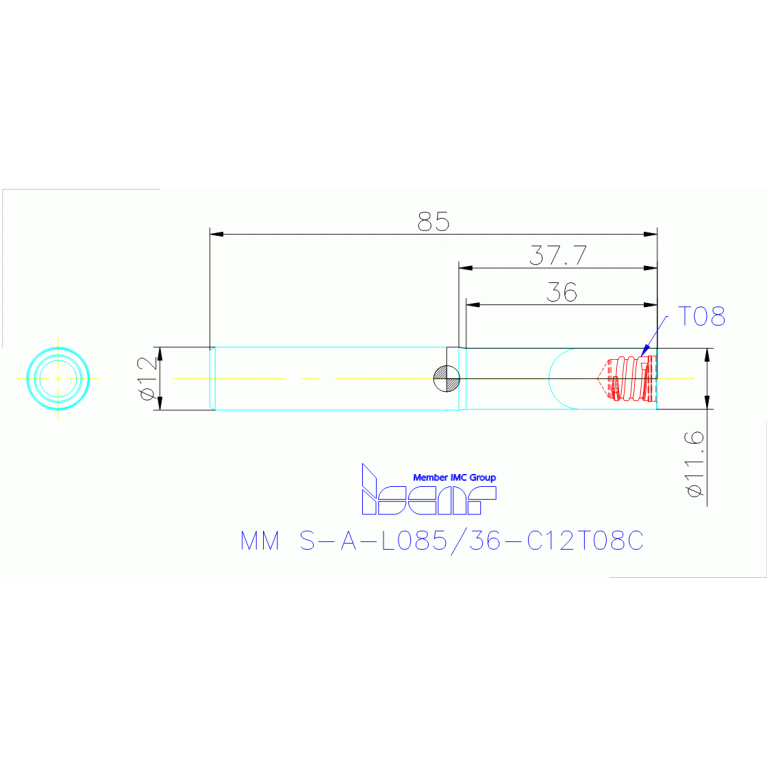

MM S-A-L085/36-C12T08C

Артикул: 3336769

В наличии

В корзину

Описание

Характеристики

BD Body diameter

11.6 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAI

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01200105

FamilyProducts

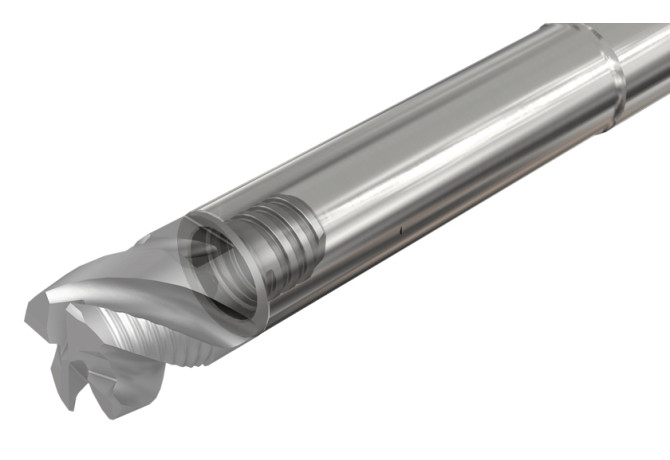

Stepped Cylindrical Shanks Carrying Interchangeable Milling Heads

HAND Cutting direction

R - Right

ID Technical product number

3336769

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

37.7 mm

LF Functional length

85 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAI Screw mounting ISCAR

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

Name Identifying order number

MM S-A-L085/36-C12T08C

OAL Overall length

85 mm

RPMX Rotational speed maximum

60000 1/min

THSZWS Connection thread nominal size workpiece side

T08

WT Weight of item

0.13 kg
