Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric HSK A32 ODP12X42

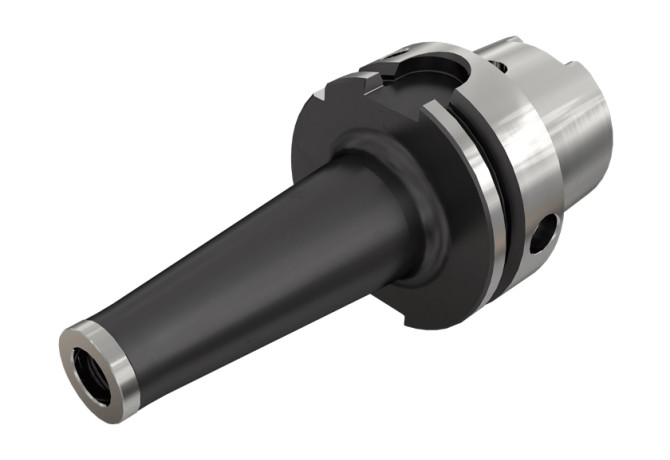

HSK A32 ODP12X42

Артикул: 3367334

В наличии

В корзину

Описание

Характеристики

BD Body diameter

21 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAI

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

32 mm

DIN

HSK03200185

FamilyProducts

FLEXFIT Threaded Adaptation with HSK DIN 69893/A Tapered Shanks

HAND Cutting direction

R - Right

ID Technical product number

3367334

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

22 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAI Screw mounting ISCAR

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK03200185

LPR Protruding length

42 mm

Name Identifying order number

HSK A32 ODP12X42

THSZWS Connection thread nominal size workpiece side

M12

WT Weight of item

0.17 kg
