Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric HSK A100 SRKIN18X100 CX

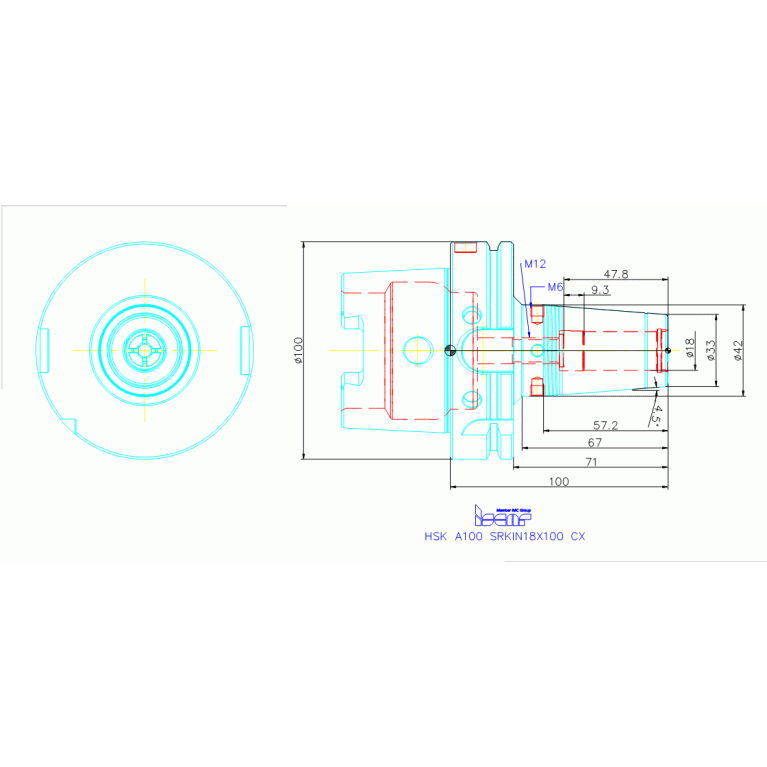

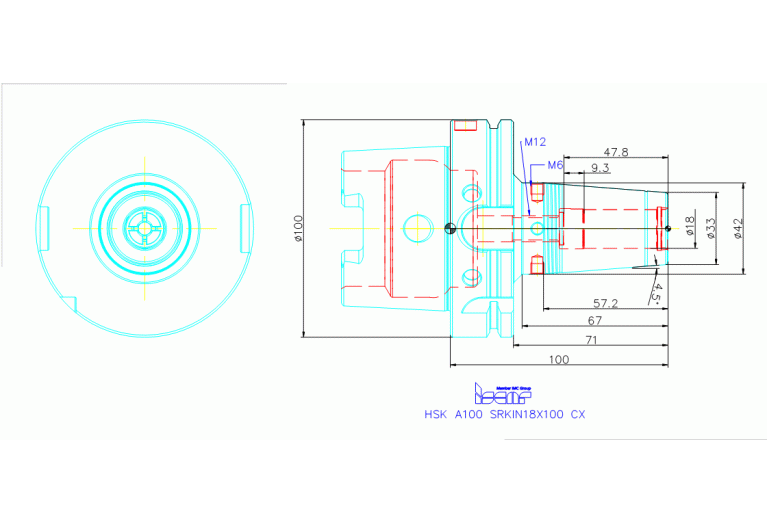

HSK A100 SRKIN18X100 CX

Артикул: 4517299

В наличии

В корзину

Описание

Характеристики

BD Body diameter

42 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

CZCWS Connection size code

0180

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

HSK10000195

FamilyProducts

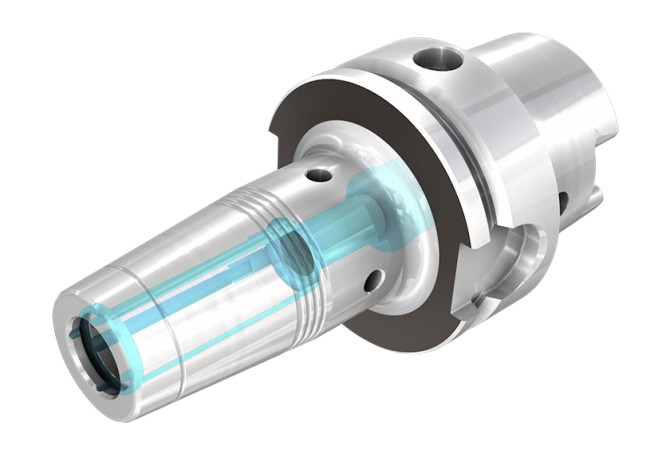

Thermal Shrink Chucks with HSK DIN69893 Form A Tapered Shank and Coolant Jet Channels along the Shank Bore

ID Technical product number

4517299

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

71 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0180

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01800115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR Protruding length

100 mm

Name Identifying order number

HSK A100 SRKIN18X100 CX

OAL Overall length

100 mm

WT Weight of item

2.53 kg
