Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric HSK A100 SEM32X78X100C

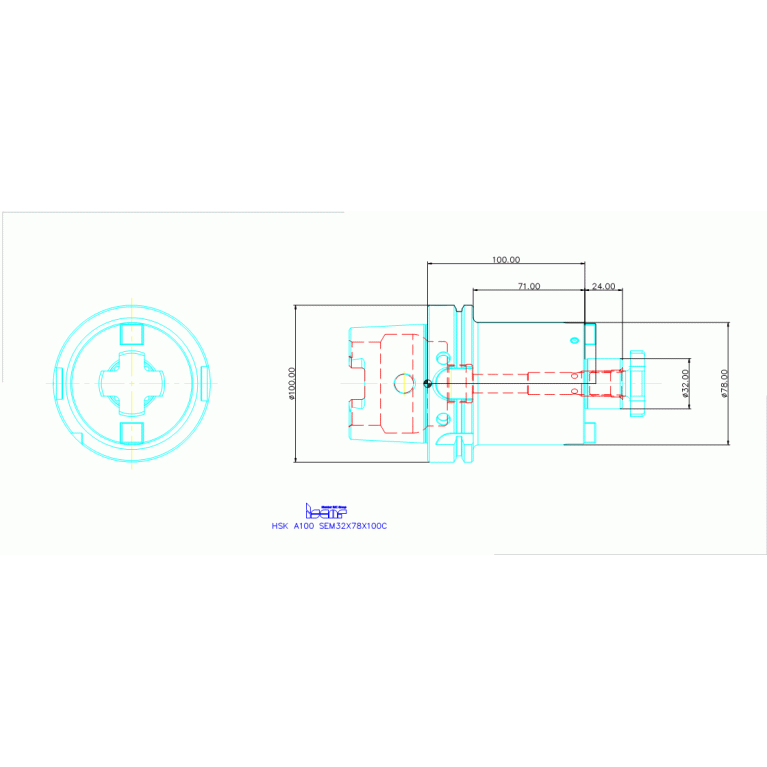

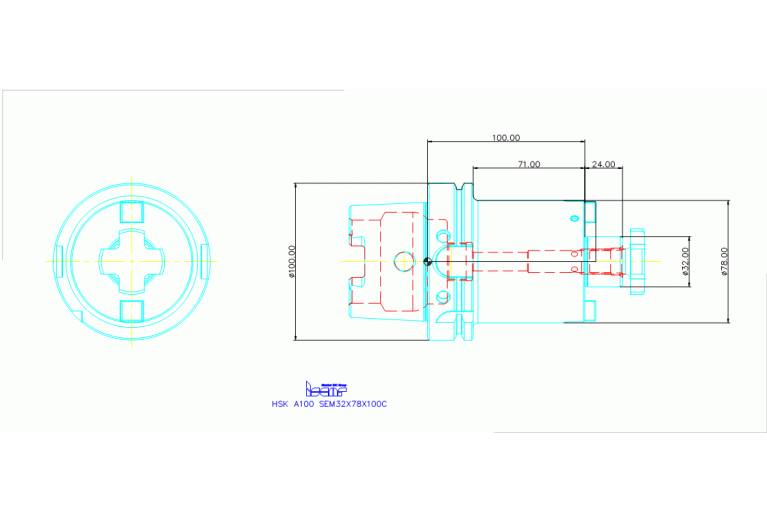

HSK A100 SEM32X78X100C

Артикул: 3372733

В наличии

В корзину

Описание

Характеристики

BD Body diameter

78 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

CZCWS Connection size code

0320

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

100 mm

DIN

HSK10000195

FamilyProducts

Shell Mill Holders with Coolant Holes and DIN69893 form A HSK Tapered Shanks

ID Technical product number

3372733

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

71 mm

LF Functional length

100 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0320

LOC-01 ISO

FDA02G3200H$07

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA03200210

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03 ISO

HSK01C1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

Name Identifying order number

HSK A100 SEM32X78X100C

OAL Overall length

174 mm

WT Weight of item

4.8 kg
