Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric HSK A100 HYDRO 32X100 HD

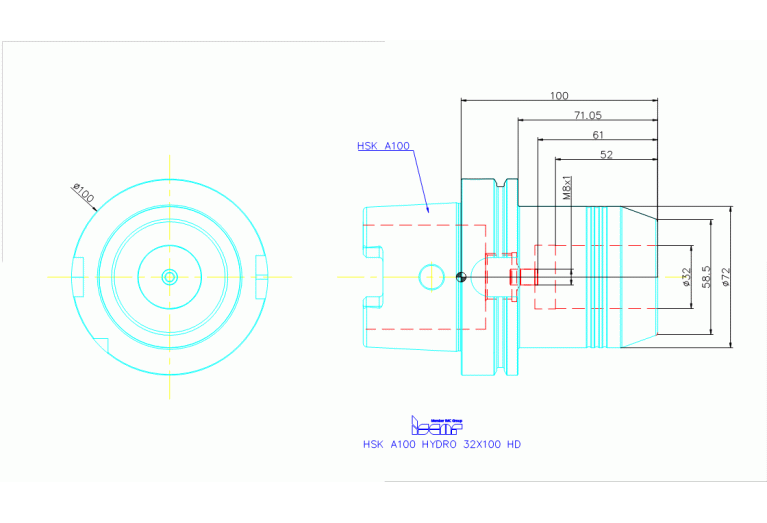

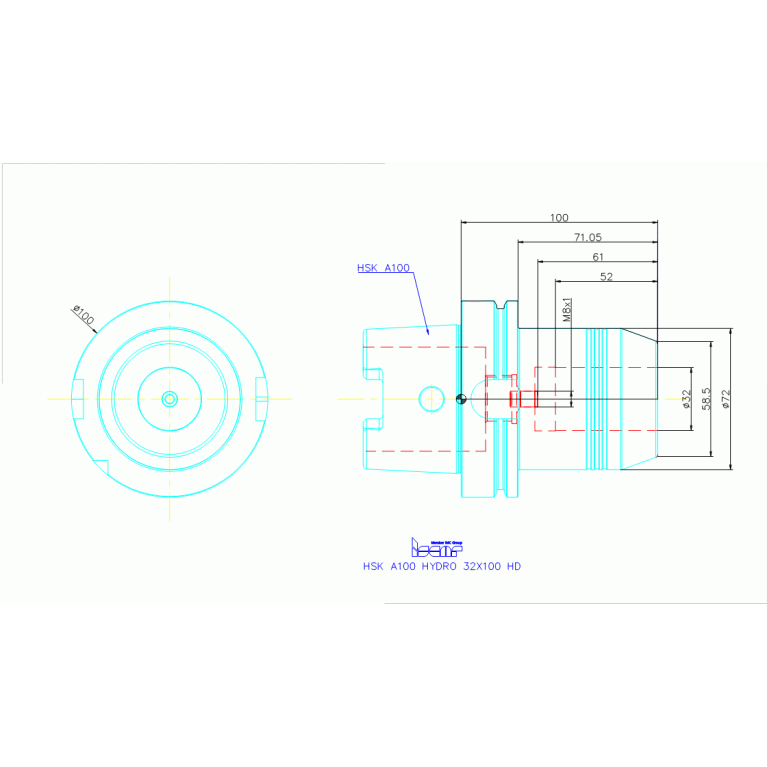

HSK A100 HYDRO 32X100 HD

Артикул: 3343650

В наличии

В корзину

Описание

Характеристики

BD Body diameter

72 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0320

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

HSK10000195

FamilyProducts

Heavy Duty, Short Hydraulic Chucks With HSK DIN69893 Form A Shanks

ID Technical product number

3343650

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0320

LOC-01 ISO

ZYL01G3200h6$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL03200115

LOC-02 CCFWS Connection code form

LOC-02 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Connection code type

ZYL cylindrical shank

LOC-02 CCUWS Connection code unit base

1 Metric with coolant

LOC-02 CZCWS Connection size code

0320

LOC-02 ISO

HYD01G3200h$06

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

HYD03200115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03 ISO

HSK01C1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR Protruding length

100 mm

Name Identifying order number

HSK A100 HYDRO 32X100 HD

OAL Overall length

149.9 mm

WT Weight of item

3.8 kg
