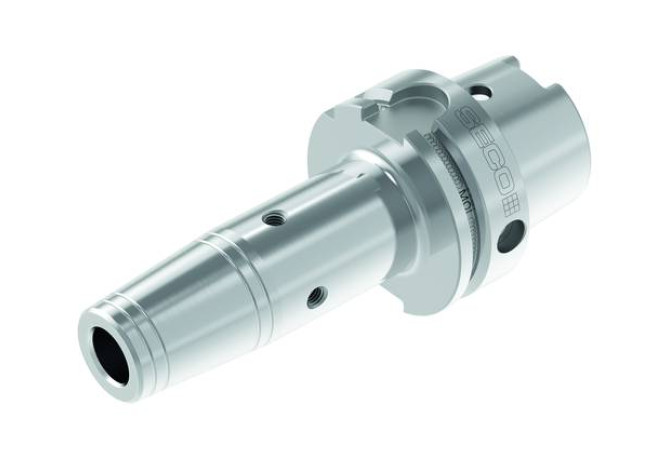

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric E9304540325160M2-5.3

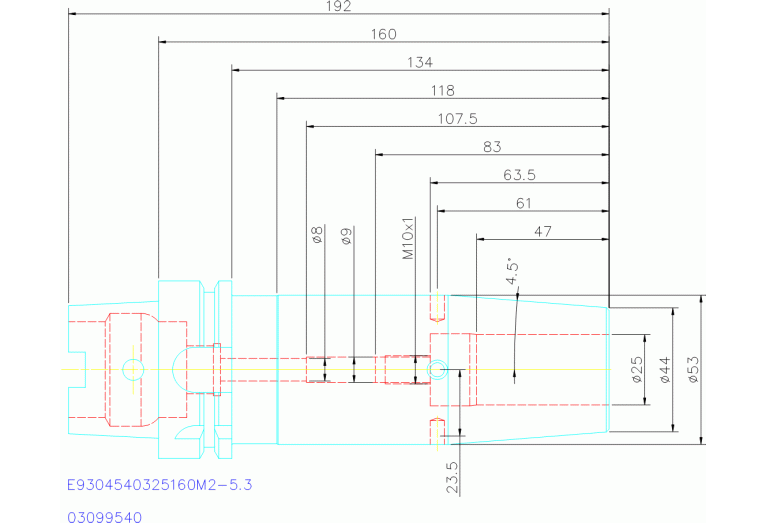

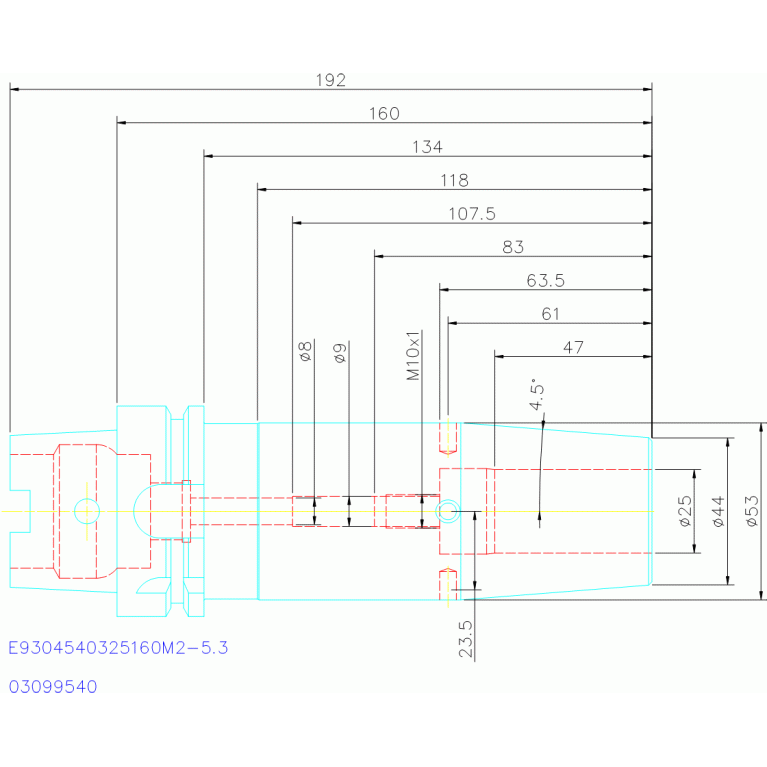

E9304540325160M2-5.3

E9304540325160M2-5.3 E9304540325160M2-5.3 E9304540325160M2-5.3 E9304540325160M2-5.3

E9304540325160M2-5.3

Seco
Артикул: 03099540
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
53 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0250
DCINTF Interference cutting diameter
44 mm
DCONWS Diameter
25 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
HSK06300185
FamilyProducts
E9304540325160M2-5.3
HAND Cutting direction
N - Neutral
ID Technical product number
03099540
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
134 mm
LF Functional length
113 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0250
LOC-01 DCONWS Diameter
25 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02500105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
HSK01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300185
LPR Protruding length
160 mm
LSCX Clamping length maximum
47 mm
Name Identifying order number
E9304540325160M2-5.3
OAL Overall length
192 mm
TA Taper angle
4.5 Degree
THSZWS Connection thread nominal size workpiece side
M10x1
WT Weight of item
0 kg
