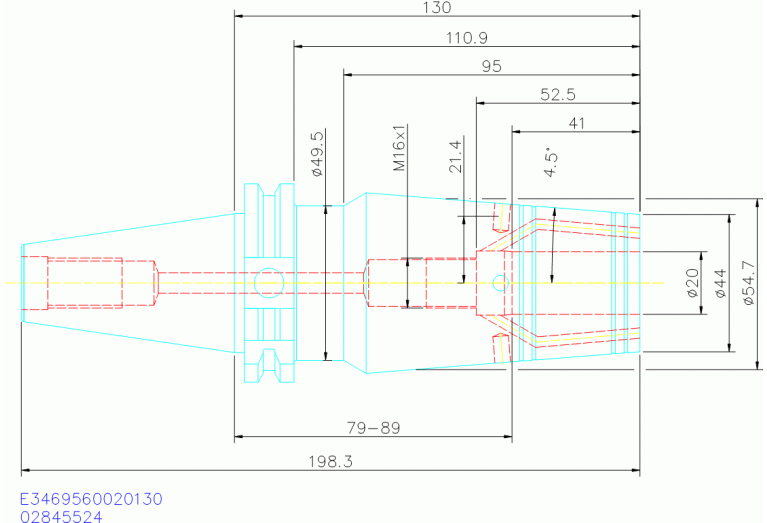

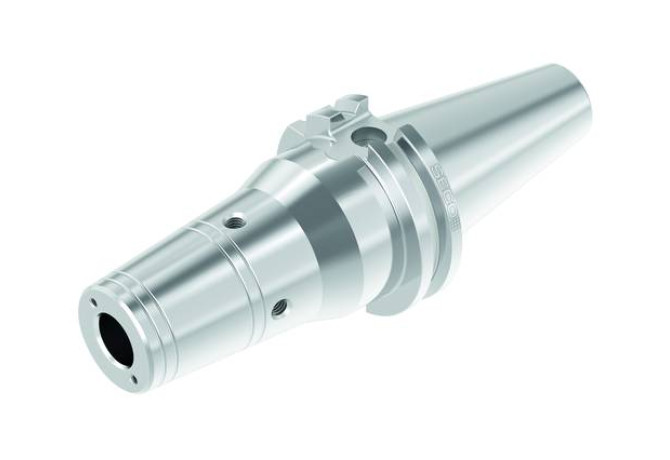

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric E3469560020130

E3469560020130

E3469560020130 E3469560020130 E3469560020130 E3469560020130

E3469560020130

Seco
Артикул: 02845524
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible

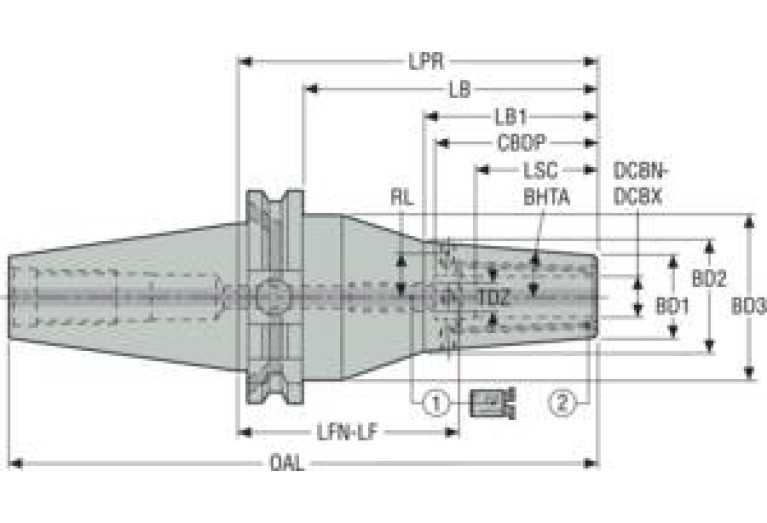

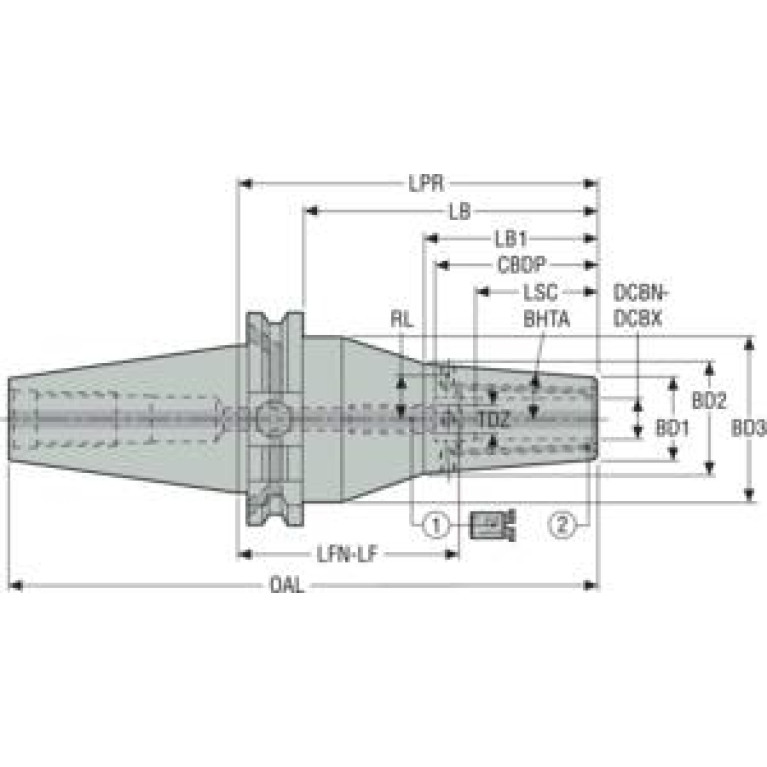

BD Body diameter
44 mm
BD Body diameter 2
53.129 mm
BD Body diameter 3
49.5 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCONWS Diameter
20 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04001795
FamilyProducts
E3469560020130
HAND Cutting direction
N - Neutral
ID Technical product number
02845524
Interface codes
J6 / J61
ISO
SKG17C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
110.9 mm
LF Functional length
89 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01 ISO
ZYL01G2000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02000115
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG17C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001795
LPR Protruding length
130 mm
LSCX Clamping length maximum
41 mm
Name Identifying order number
E3469560020130
OAL Overall length
198.4 mm
TA Taper angle
4.5 Degree
WT Weight of item
2.36 kg
