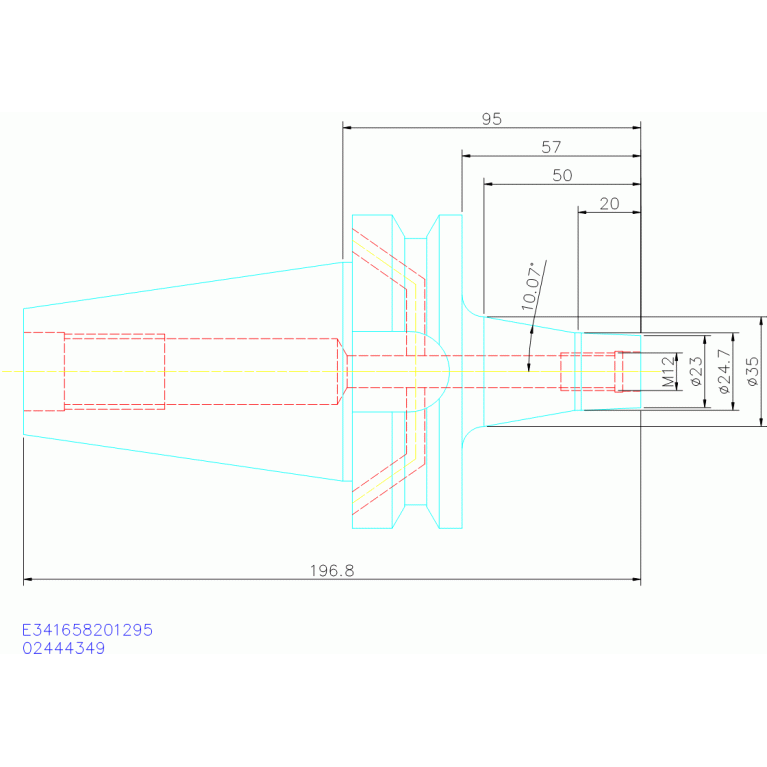

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric E341658201295

E341658201295

E341658201295 E341658201295 E341658201295

E341658201295

Seco
Артикул: 02444349
В наличии
В корзину
Описание
Характеристики
BD Body diameter
24.7 mm
BD Body diameter 2
35 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SCM
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0230
DCINTF Interference cutting diameter
23 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG05005795
FamilyProducts
E341658201295
HAND Cutting direction
N - Neutral
ID Technical product number
02444349
Interface codes
J6 / J61
ISO
SKG57C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
20 mm
LB Length 2
50 mm
LB Length Body diameter 3
57 mm
LF Functional length
95 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SCM
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0230
LOC-01 ISO
SCM01G2300$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SCM02300115
LOC-03 CCFMS Connection code form
57
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SKG57C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05005795
LPR Protruding length
95 mm
Name Identifying order number
E341658201295
OAL Overall length
196.8 mm
TA Taper angle
9.7 Degree
WT Weight of item
3.76 kg
