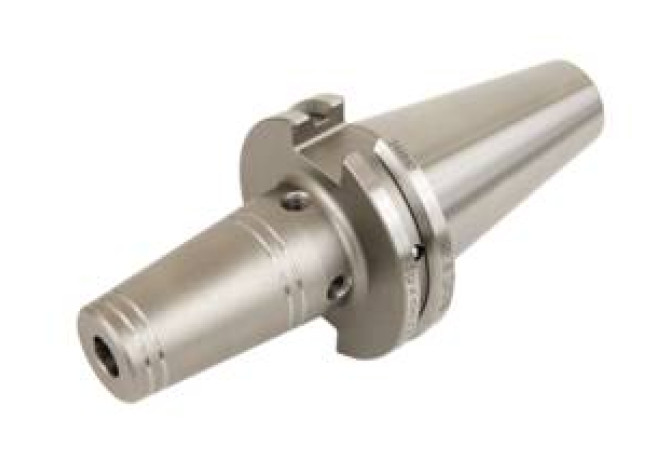

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric E2504560332400

E2504560332400

E2504560332400 E2504560332400 E2504560332400 E2504560332400

E2504560332400

Seco
Артикул: 02753308
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
53 mm
BD Body diameter 2
53 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCINTF Interference cutting diameter
44 mm
DCONWS Diameter
32 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG05004795
FamilyProducts
E2504560332400
HAND Cutting direction
N - Neutral
ID Technical product number
02753308
Interface codes
J6 / J61
ISO
SKG37C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
82.5 mm
LF Functional length
50.6 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01 ISO
ZYL01G3200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03200115
LOC-03 CCFMS Connection code form
47
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SKG37C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05004795

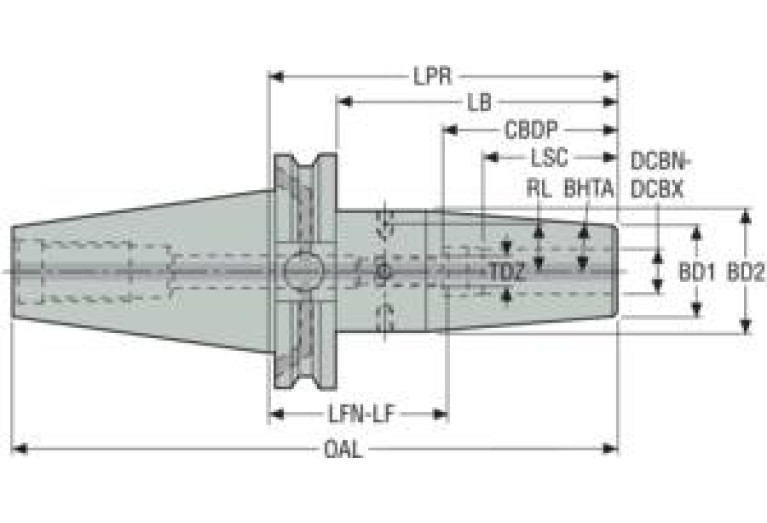

LPR Protruding length
101.6 mm
LSCX Clamping length maximum
51 mm
Name Identifying order number
E2504560332400

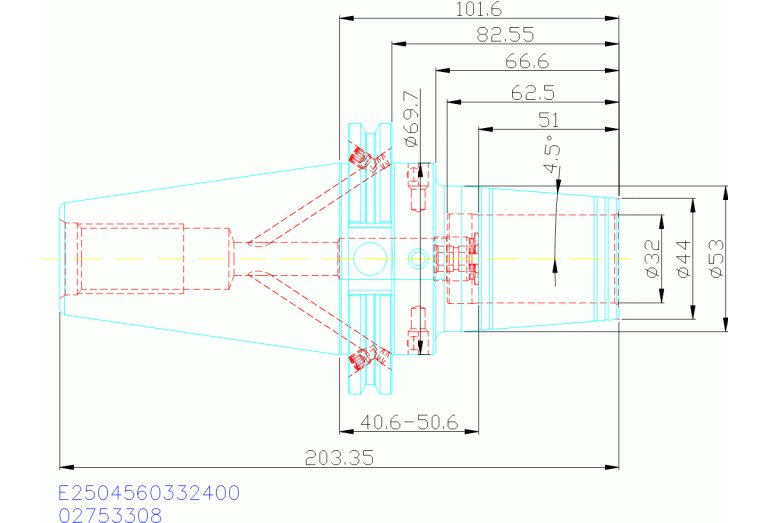

OAL Overall length
203.35 mm
TA Taper angle
4.5 Degree
WT Weight of item
3.543 kg
