Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric DIN69871 50 SRKIN 8X80 CX

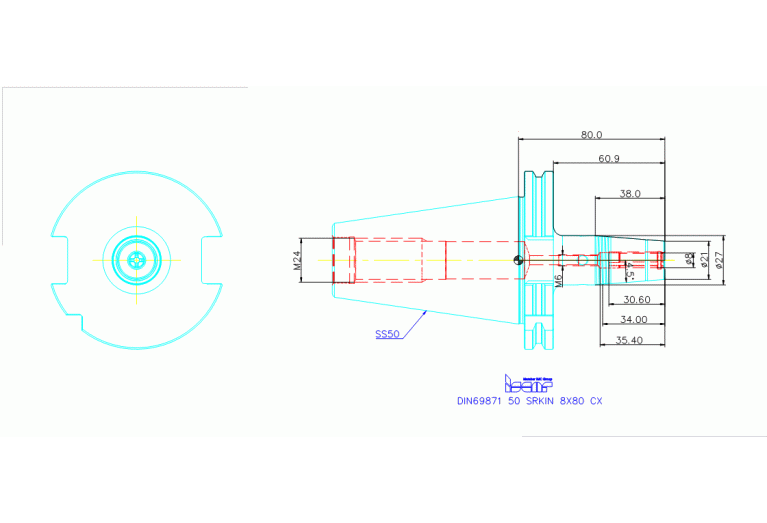

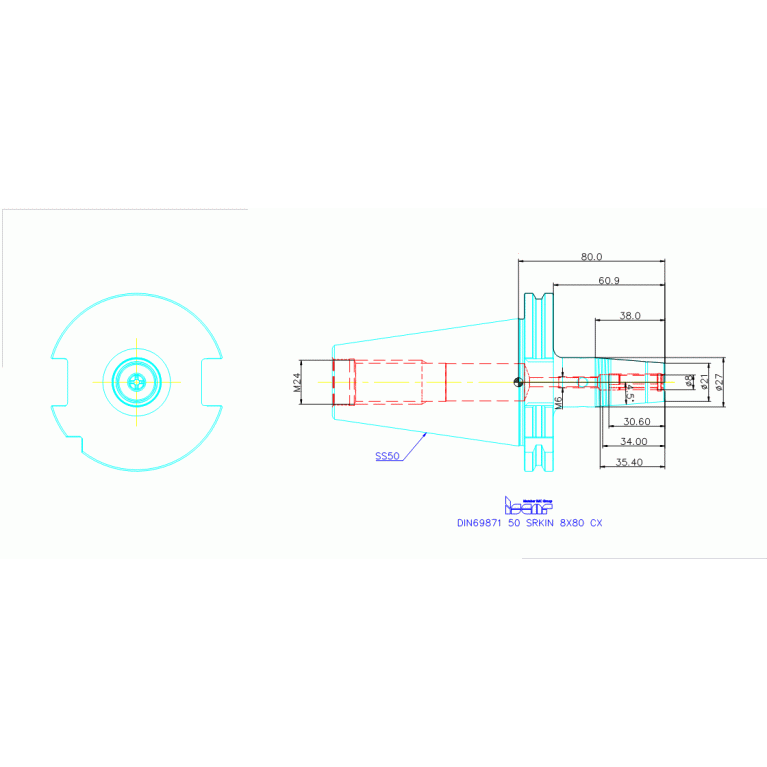

DIN69871 50 SRKIN 8X80 CX

Артикул: 4517285

В наличии

В корзину

Описание

Характеристики

BD Body diameter

27 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

CZCWS Connection size code

0080

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

97.5 mm

DIN

SKG05001195

FamilyProducts

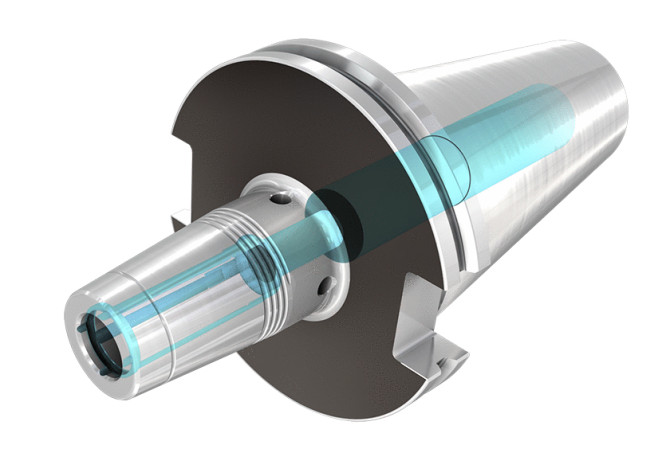

Thermal Shrink Chucks with DIN69871 Form AD Tapered Shank and Coolant Jet Channels along the Shank Bore

ID Technical product number

4517285

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

60.9 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0080

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00800115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001195

LPR Protruding length

80 mm

Name Identifying order number

DIN69871 50 SRKIN 8X80 CX

WT Weight of item

2.71 kg
