Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric DIN69871 50 SRKIN 6X 80

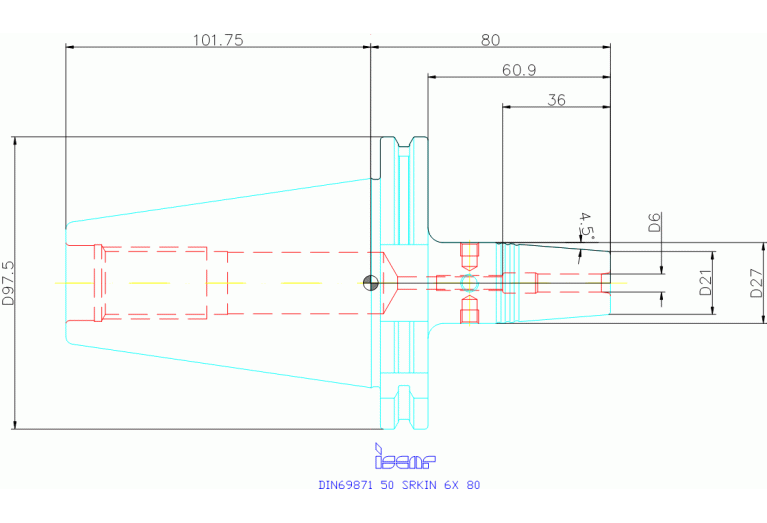

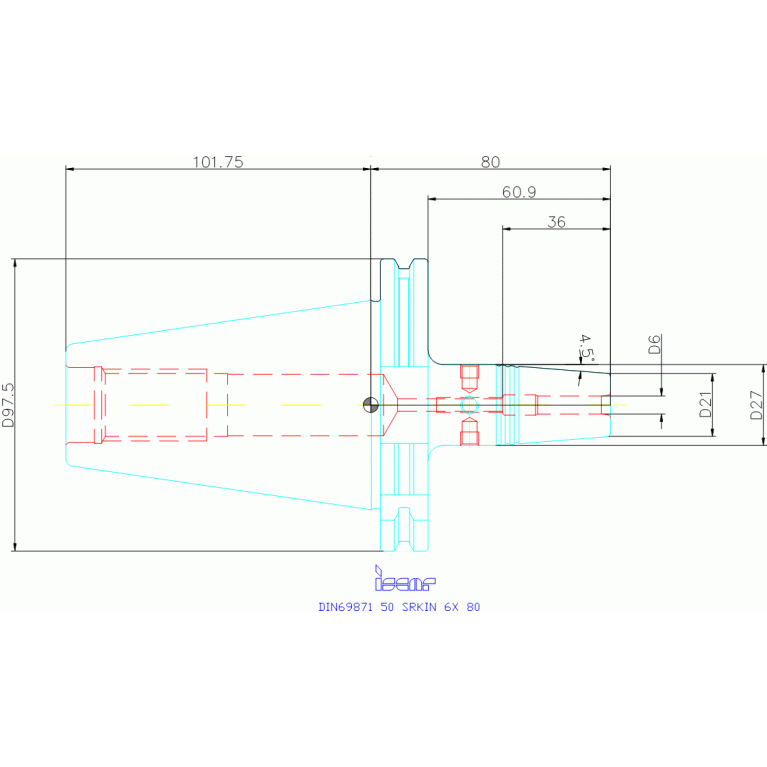

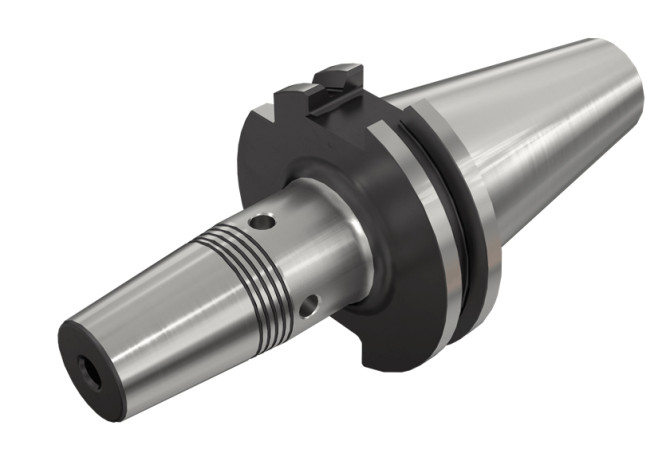

DIN69871 50 SRKIN 6X 80

Артикул: 4504238

В наличии

В корзину

Описание

Характеристики

BD Body diameter

27 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0060

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

97.5 mm

DIN

SKG05001195

FamilyProducts

Thermal Shrink Chucks with DIN 69871 Form AD Taper Shanks for Solid Carbide HSS and Steel Tools

ID Technical product number

4504238

Interface codes

J6 / J61

ISO

SKG11C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

60.9 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0060

LOC-01 ISO

ZYL01F6000h$06

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00600115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG11C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001195

LPR Protruding length

80 mm

Name Identifying order number

DIN69871 50 SRKIN 6X 80

OAL Overall length

181.75 mm

WT Weight of item

2.72 kg
