Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric DIN2080 30 ER16X 75

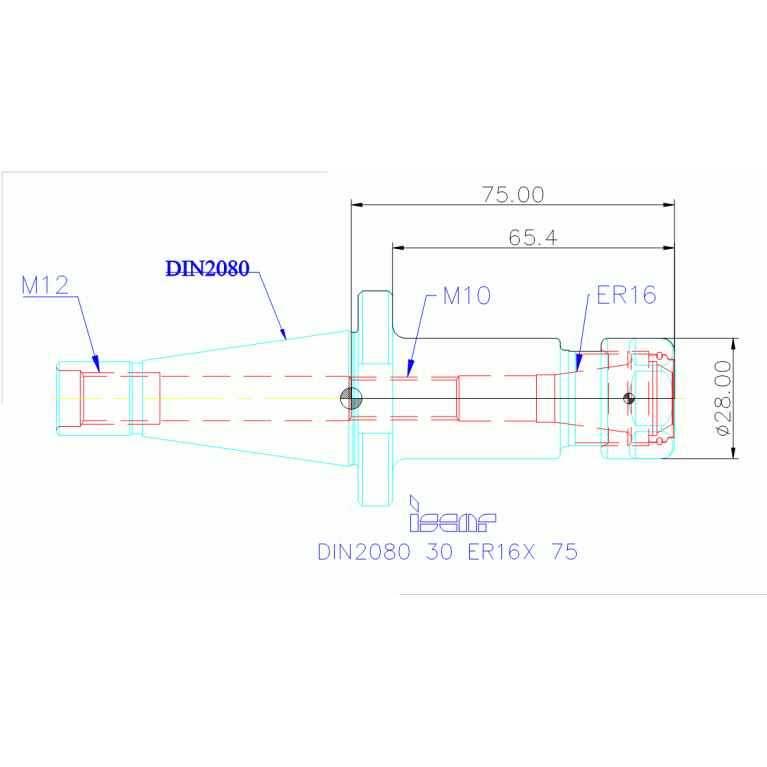

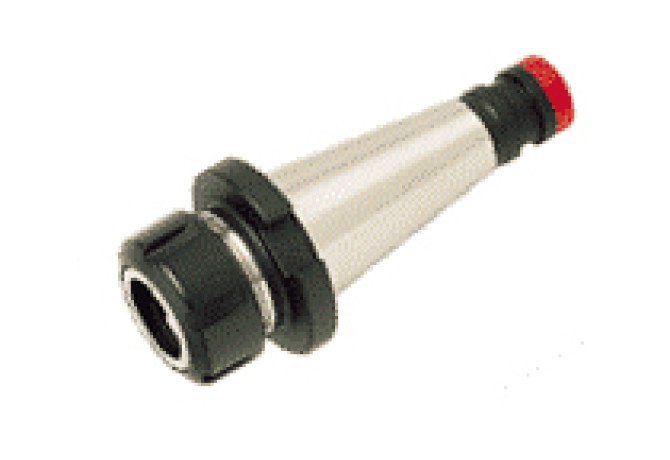

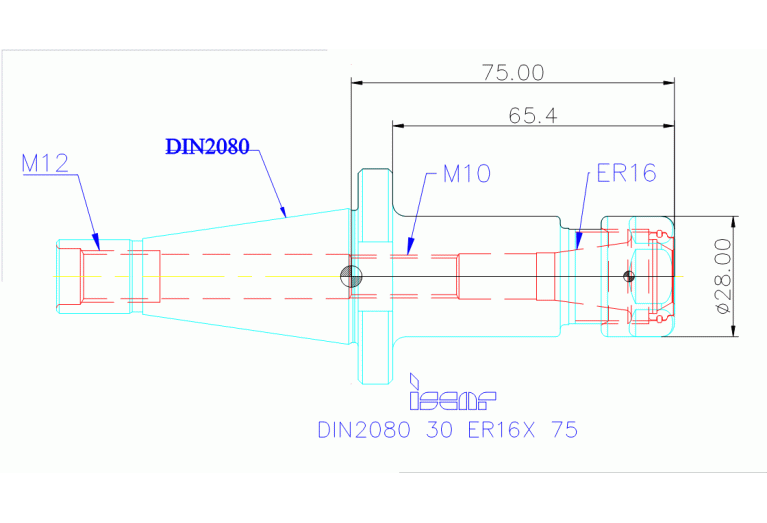

DIN2080 30 ER16X 75

Артикул: 4503007

В наличии

В корзину

Описание

Характеристики

BD Body diameter

28 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0160

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

50 mm

DIN

SKG03002085

FamilyProducts

DIN 6499 ER Collet Chucks with DIN 2080 AD Tapered Shanks

ID Technical product number

4503007

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

65.4 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01 CZCWS Connection size code

0160

LOC-01 ISO

SZD02C0160$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01600285

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0300

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG03002085

LPR Protruding length

75 mm

Name Identifying order number

DIN2080 30 ER16X 75

OAL Overall length

143.4 mm

WT Weight of item

0.48 kg
